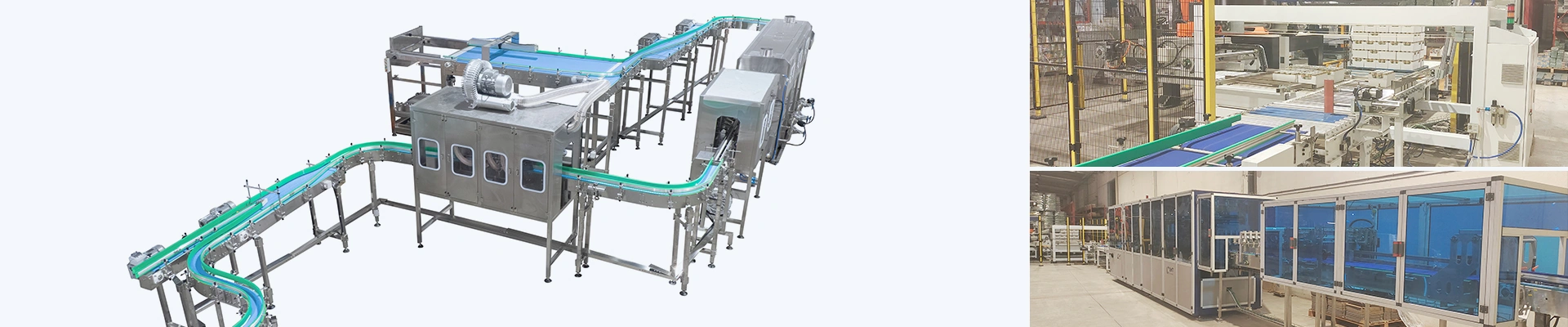

Canned Bean Production Line

Designed for a wide range of bean-based canned products, this canned production line is suitable for baked beans in tomato sauce, sweet red beans, chickpeas, kidney beans, green beans, broad beans, black beans, and mixed beans.

From raw material washing and soaking, pre-cooking, and grading to accurate filling, seaming, high-temperature sterilization, and end-of-line packaging, the production line can be adjusted according to different bean processing requirements. One set of equipment can support product changeover for multiple bean products, helping customers build a wider product range with lower equipment investment.

  • Control system: PLC intelligent control with touchscreen operation
  • Capacity: 20–200 cans/min, customizable
  • Operation mode: Fully automatic, with manual emergency operation
  • Material: SUS304 / SUS316 stainless steel
Request a Quote
Process
Raw Material Preparation and Sorting Chickpeas are first sorted to remove impurities and unqualified beans.
Soaking and Softening After sorting, the chickpeas are soaked for 12–24 hours to ensure proper softening for the next processing steps. Water temperature and water quality should be controlled during soaking to help maintain bean quality.
Cooking The soaked chickpeas enter the cooking equipment for heat treatment. Cooking time and temperature can be adjusted according to bean size and quality.
Dewatering Removes residual surface water from cooked beans prior to filling, ensuring precise dosing and consistent brine or sauce concentration.
Filling and Seaming After dewatering, the chickpeas are filled into cans together with seasoning liquid or brine. The process helps keep the beans evenly distributed in each can and maintains the proper liquid concentration. The cans are then sealed by a can seamer to prevent leakage.
Sterilization Sealed cans enter the sterilization equipment for high-temperature treatment. Water bath or steam sterilization can be used to ensure thorough sterilization while maintaining product taste and nutrition.
Cooling After sterilization, the cans are cooled to prevent excessive internal pressure caused by high temperature. Cooling can be done by cold water immersion or air cooling.
Labeling and Packaging Cooled cans are labeled by automatic equipment to ensure accurate production date, shelf life, and other information. The products are then packed for transportation and sales.
Quality Inspection
Main Components
    • Empty Can Depalletizer
      Empty Can Depalletizer

      Automatically unloads empty cans and bottles layer by layer onto conveyors for stable, high-speed line feeding.

    • Empty Can Rinser
      Empty Can Rinser

      Using magnetic positioning and high-pressure water spraying to automatically clean empty metal cans inside and out before filling.

    • Rotary Filler
      Rotary Filler

      Filling processed raw ingredients automatically into cans or jars with precise volumetric control.

    • Automatic Can Seamer
      Automatic Can Seamer

      Creating airtight double-seam seals for metal cans with optional vacuuming or nitrogen flushing to ensure long-term product shelf life.

    • Retort Crate Loader & Unloader
      Retort Crate Loader & Unloader

      Automatically loading filled cans into retort baskets before sterilization and unloading them afterwards for seamless line flow.

    • Autoclaves & Sterilization Retorts
      Autoclaves & Sterilization Retorts

      Providing high-temperature thermal sterilization at ~121°C to extend canned food shelf life and satisfy strict safety standards.

    • Filled Can Washer
      Filled Can Washer

      Removing surface grease and residues using dual-stage water spraying to clean sealed cans thoroughly after filling.

    • Air Knife Drying System
      Air Knife Drying System

      Blowing off surface moisture from washed cans using ambient high-speed air knives to prepare them for labeling.

    • Magnetic Palletizer & Depalletizer
      Magnetic Palletizer & Depalletizer

      Injecting steam to seal glass jars with vacuum tightness, preserving freshness and extending shelf life.

    • Horizontal Glue Labeling Machine
      Horizontal Glue Labeling Machine

      Applying paper or film labels around cylindrical cans using fast-drying hot melt adhesive for economical, high-speed labeling.

    • Case Erecting Machine
      Case Erecting Machine

      Automatically opening carton blanks, forming boxes, and sealing the bottom with tape for downstream case packing.

    • Servo Case Packer
      Servo Case Packer

      Integrating product arranging, picking, and precision placement into cartons via servo-driven positioning for flexible, damage-free packing.

    • Case Sealing Machine
      Case Sealing Machine

      Folding top flaps and applying adhesive tape to seal filled cartons securely for transport.

    • Single Column Palletizer
      Single Column Palletizer

      Stacking finished cases automatically with a compact footprint, ideal for small spaces and medium-speed lines
