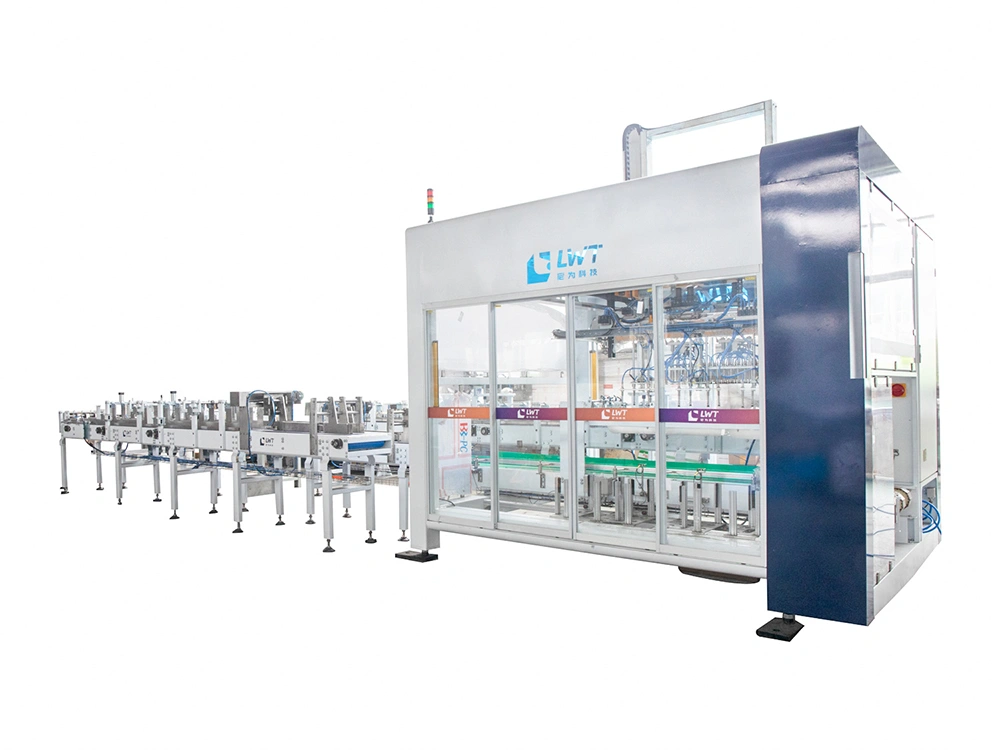

Servo Case Packer
Integrating product arranging, picking, and precision placement into cartons via servo-driven positioning for flexible, damage-free packing.
The servo case packer uses servo motors and PLC control to complete fully automatic packaging, covering product arranging, picking, and case packing in one integrated process. With high-accuracy positioning and a compact structure, the servo case packing machine can adapt to different product types and packaging requirements.
The case packer can connect smoothly with a case erector, case sealer, and palletizer, making it suitable for food and beverage, pharmaceutical, daily chemical, 3C electronics, and logistics applications. It supports efficient, stable, and flexible production with lower labor requirements.

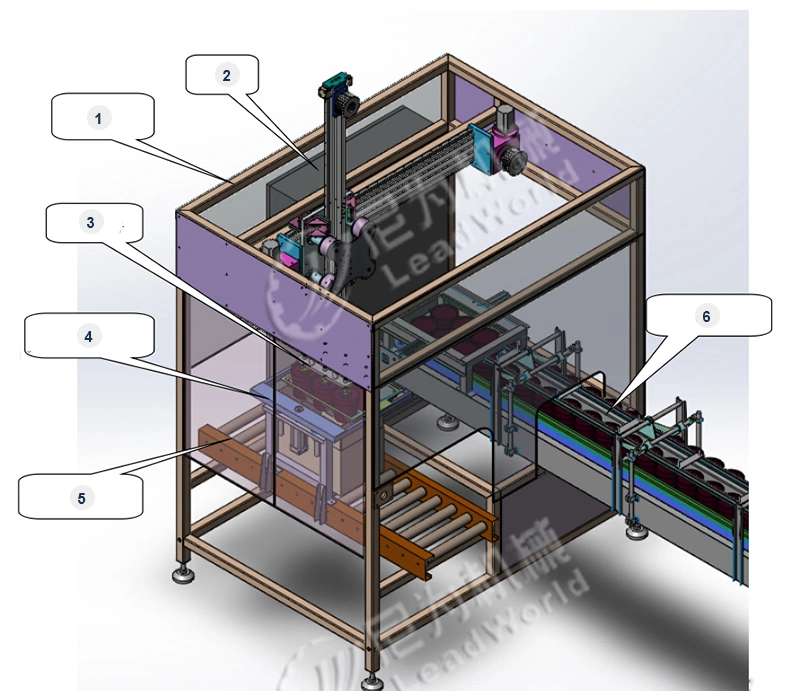

- 1 Machine Frame

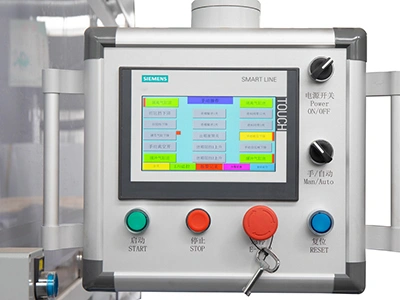

- 2 Electrical Control Box

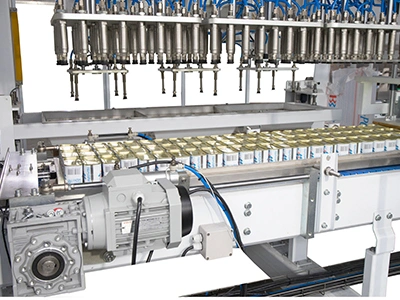

- 3 Bottle Picking Unit
- 4 Case Opening and Supporting Mechanism
- 5 Case Infeed Conveyor

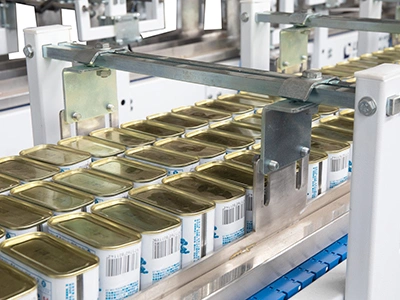

- 6 Bottle Infeed Conveyor
| Model | | | | | |
| Capacity | 480 cases/h | 12,000 cases/h | 24,000 cases/h | 36,000 cases/h | 48,000 cases/h |
| Power supply / power consumption | AC 380V, 50Hz, 3.7kW | AC 380V, 50Hz, 3.7kW | AC 380V, 50Hz, 4.5kW | AC 380V, 50Hz, 4.5kW | AC 380V, 50Hz, 5.2kW |
| Applicable products | Glass bottles, PET bottles, tin cans, bags | ||||
| Packing formats | Paper cartons, plastic boxes | ||||
| Case packing methods | Side push, drop packing, servo packing, sprocket packing, robot packing, spider hand packing | ||||
