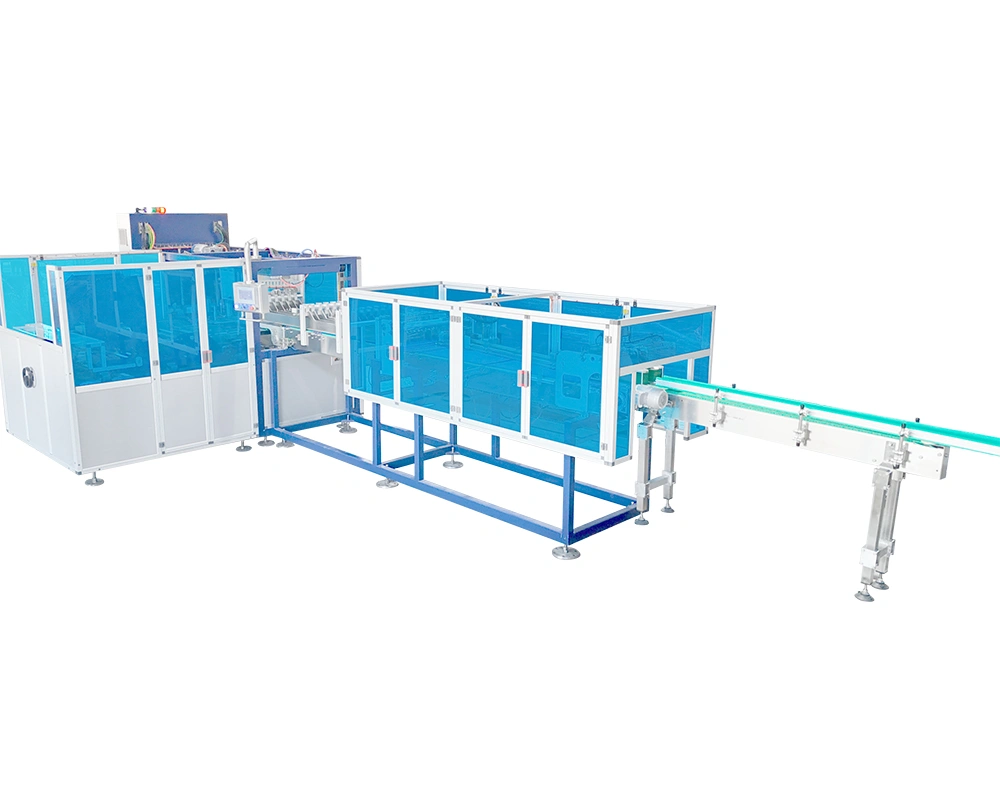

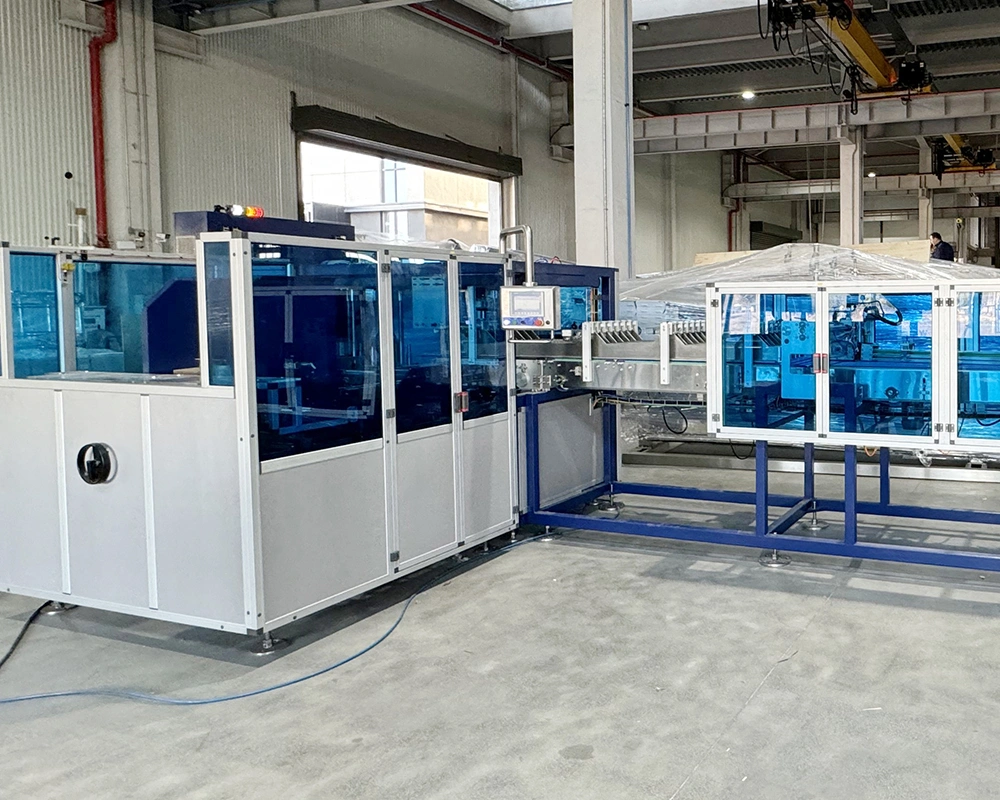

Wrap Around Case Packer
The wrap around case packer uses a single carton blank to complete wrap-around case packing, eliminating the need for separate case forming and case erecting steps. Equipped with a hot melt glue system and servo lane-dividing mechanism, the wrap around case packing machine supports product grouping, automatic packing, and full-process monitoring.
Manual and fully automatic operation modes are available, with storable and adjustable parameters for flexible production. This packaging solution is suitable for beer, liquor, beverages, cigarettes, soap, instant noodles, and other products, helping improve packing efficiency while maintaining packaging accuracy and reliability.

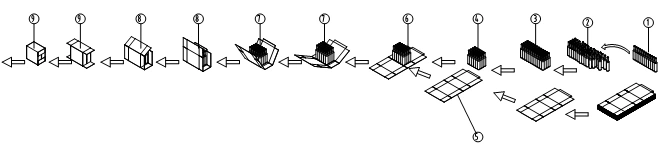

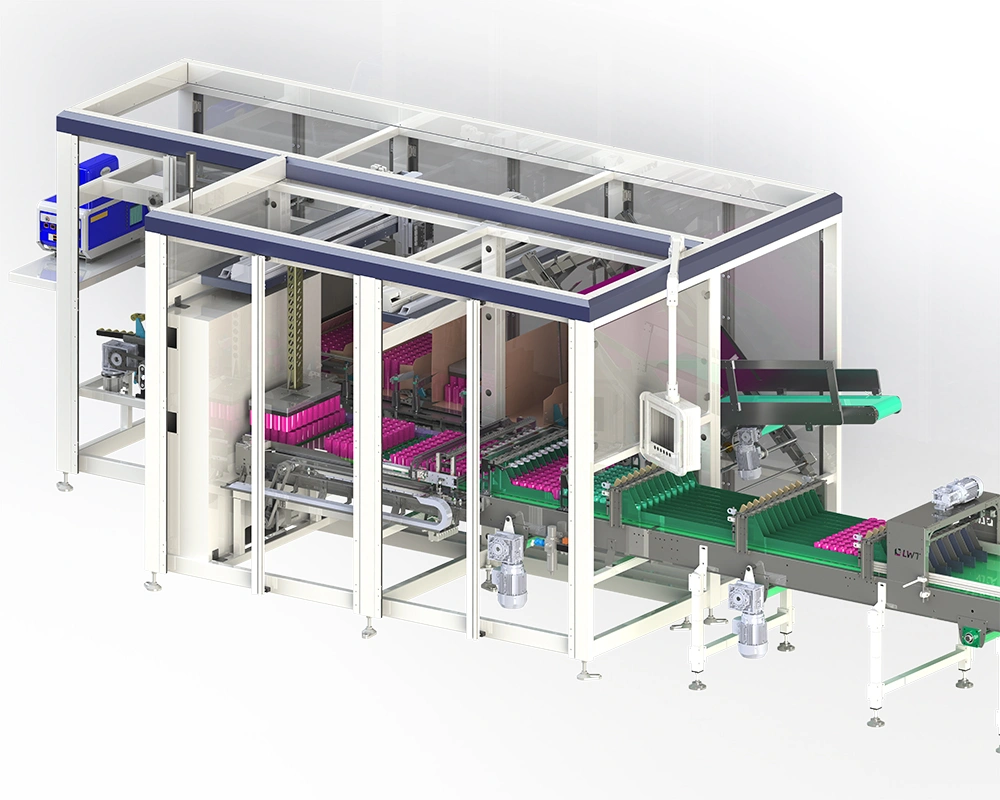

Working Process
- 1 Bottle infeed conveyor
- 2 Connecting conveyor
- 3 Bottle arranging conveyor
- 4 Bottle group conveyor

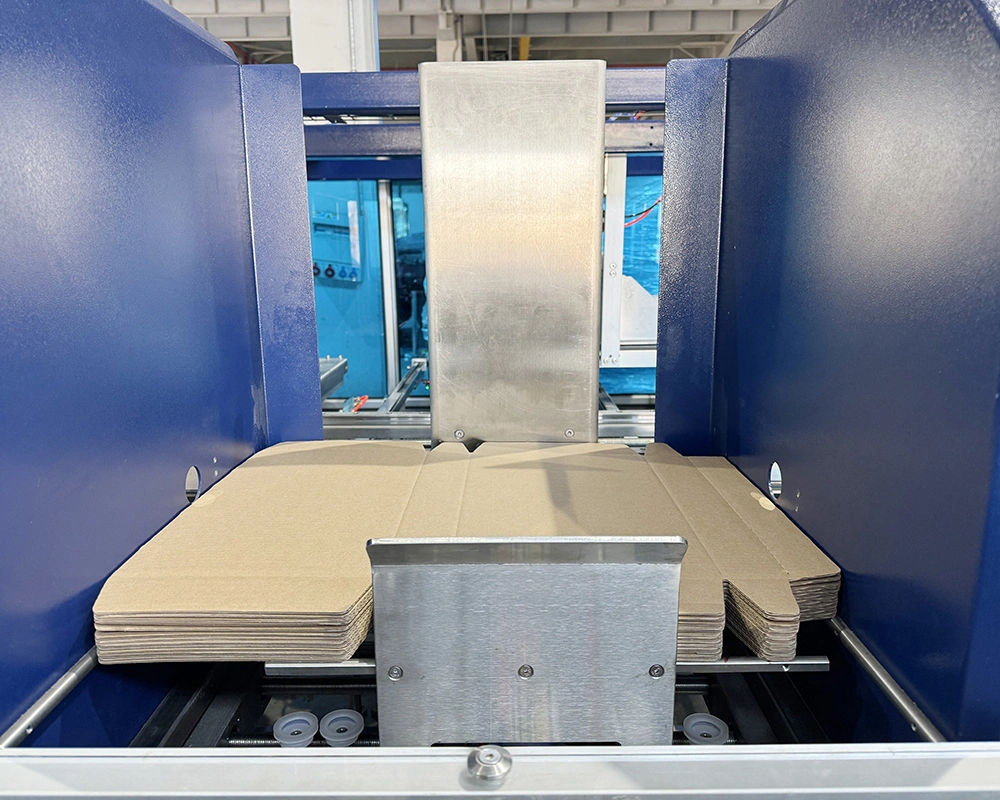

- 5 Carton blank conveyor
- 6 Bottle and carton blank matching
- 7 Carton flap folding guide conveyor
- 8 Carton flap folding and glue spraying conveyor
- 9 Gluing and forming conveyor
Specifications
| Model | | | |
| Capacity | 20 cases/min | 40 cases/min | 60 cases/min |
| Packing type | Wrap-around carton | Wrap-around carton | Wrap-around carton |
| Carton size | L300–460 × W150–400 × H100–300mm | L200–550 × W150–400 × H100–400mm | — |
| Bottle feeding method | Side-loading | Drop-loading | Drop-loading |

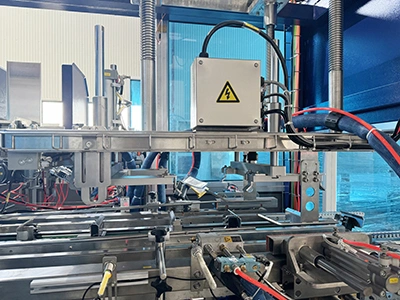

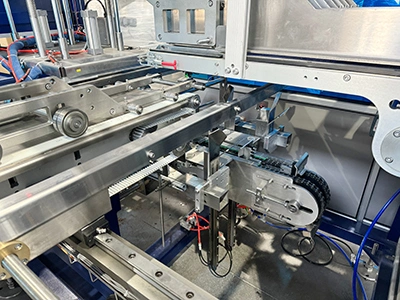

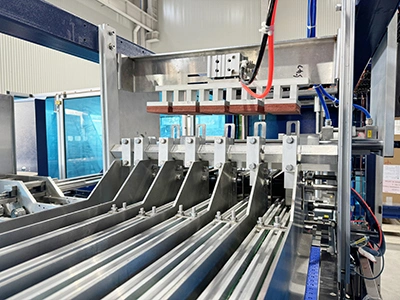

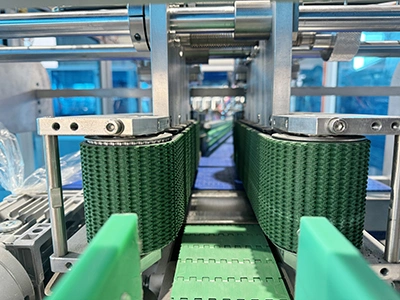

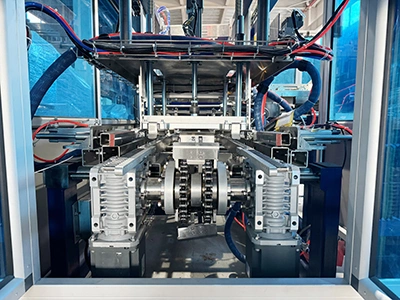

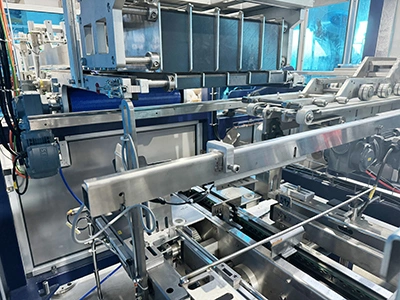

Machine details
