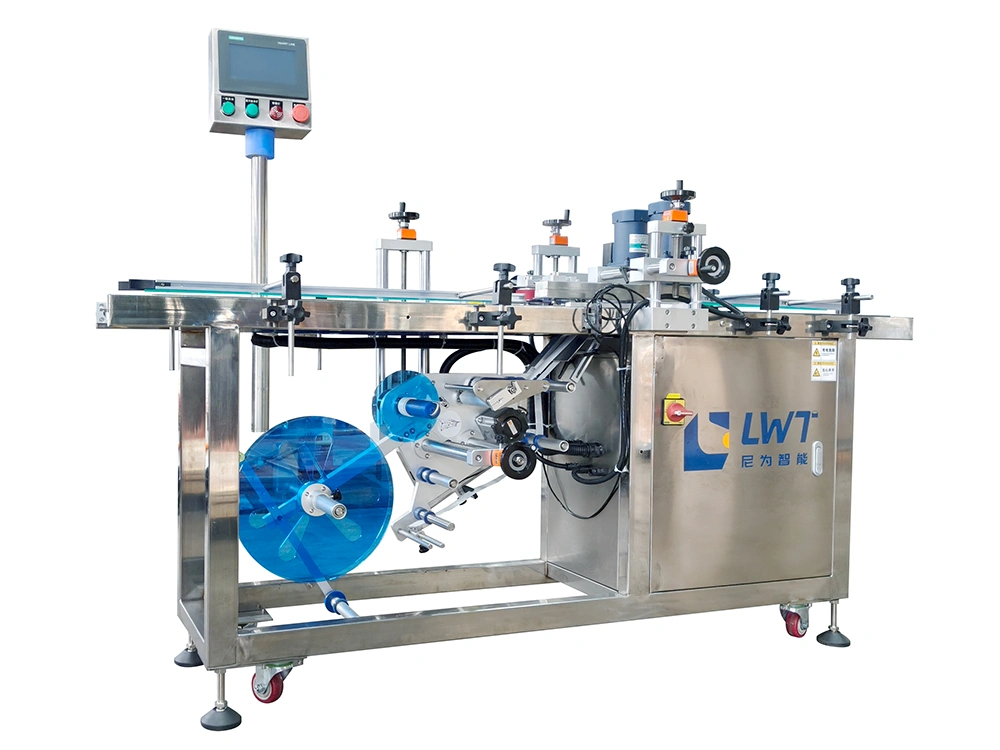

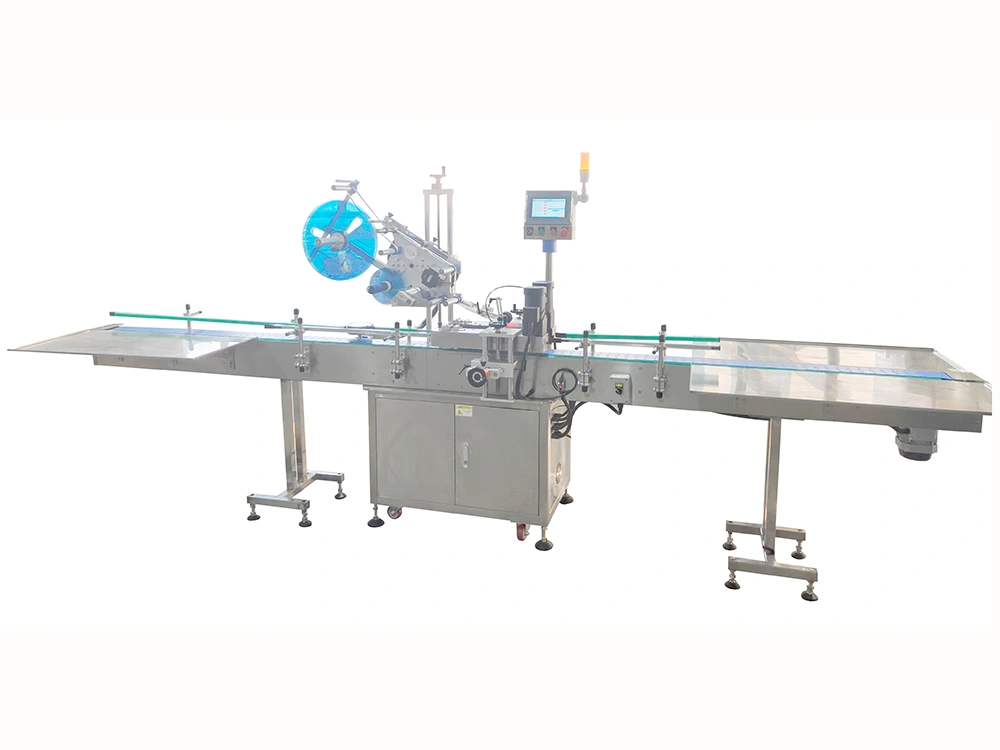

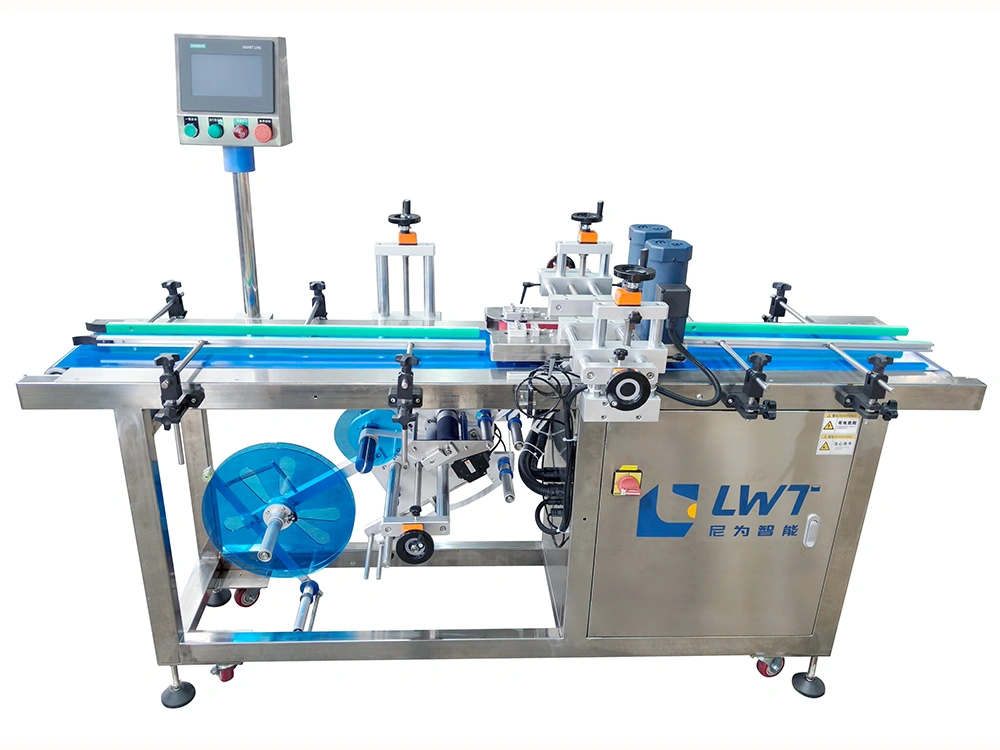

Top Labeler / Bottom Labeler
Automatic Labeling Machine for Flat Surfaces
This automatic top labeler / bottom labeler uses advanced photoelectric detection to apply labels accurately on flat surfaces, bags, boxes, and trays. With synchronized label dispensing and pressing mechanisms, it guarantees precise label positioning and flawless surface attachment.
Widely applied in food packaging, pharmaceuticals, cosmetics, and electronics, this top labeling system streamlines packaging operations, ensures consistent label quality, and enhances overall production output.
Working Process: Product conveying → Photoelectric positioning → Label peeling → Synchronized labeling → Label pressing → Finished product output and automatic counting

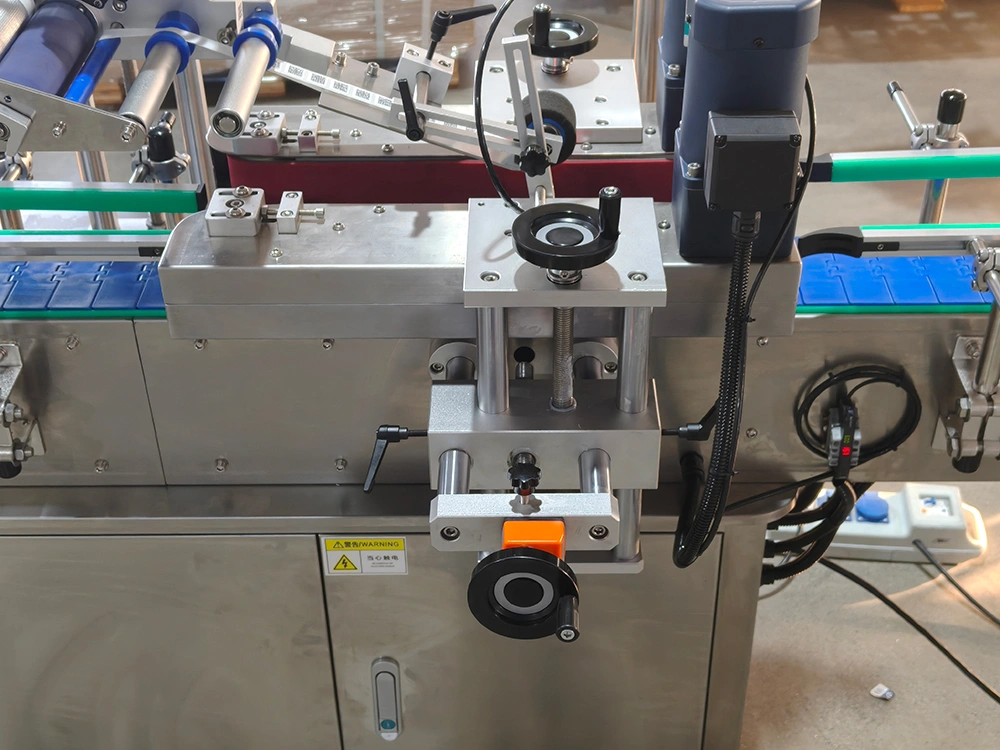

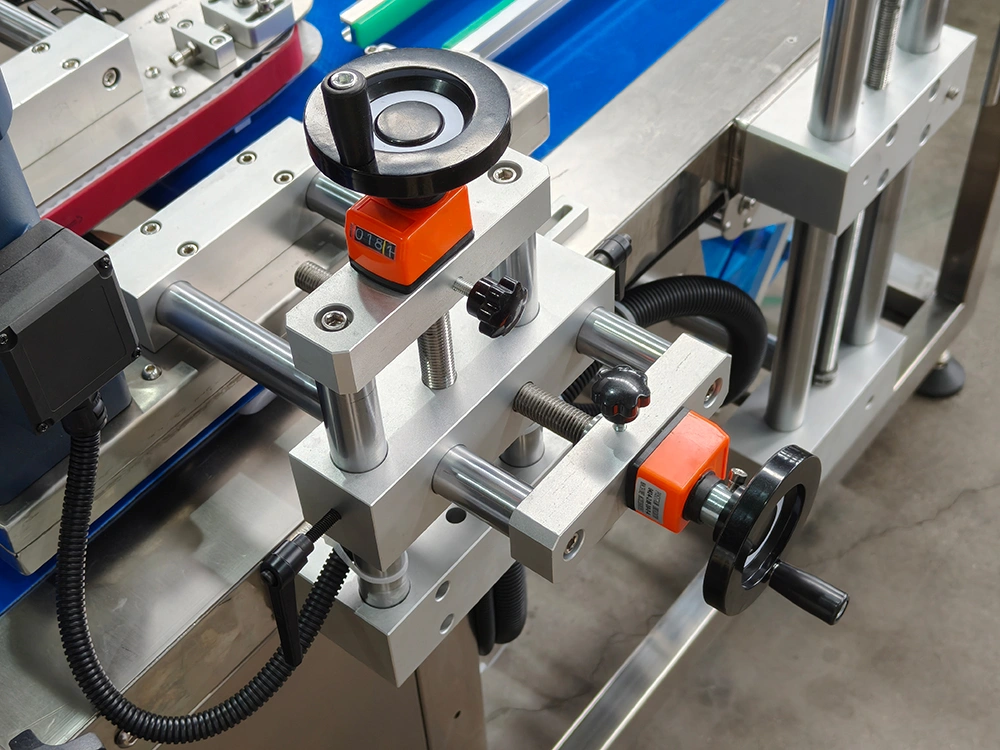

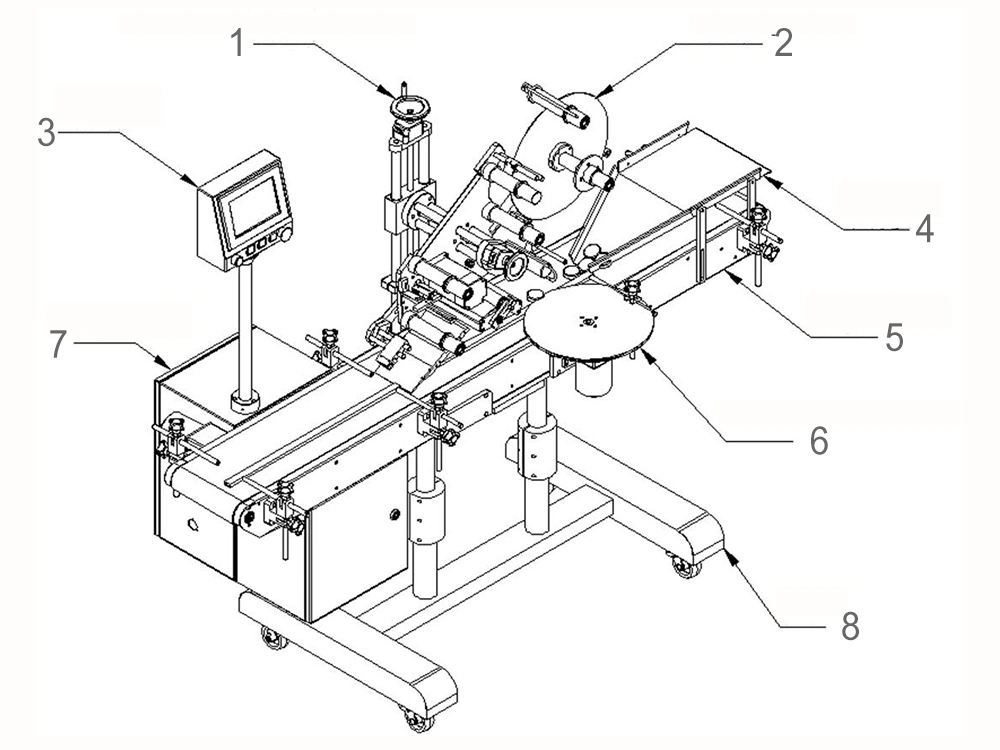

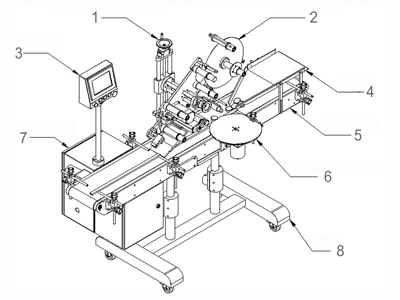

- 1 Head Adjustment Mechanism

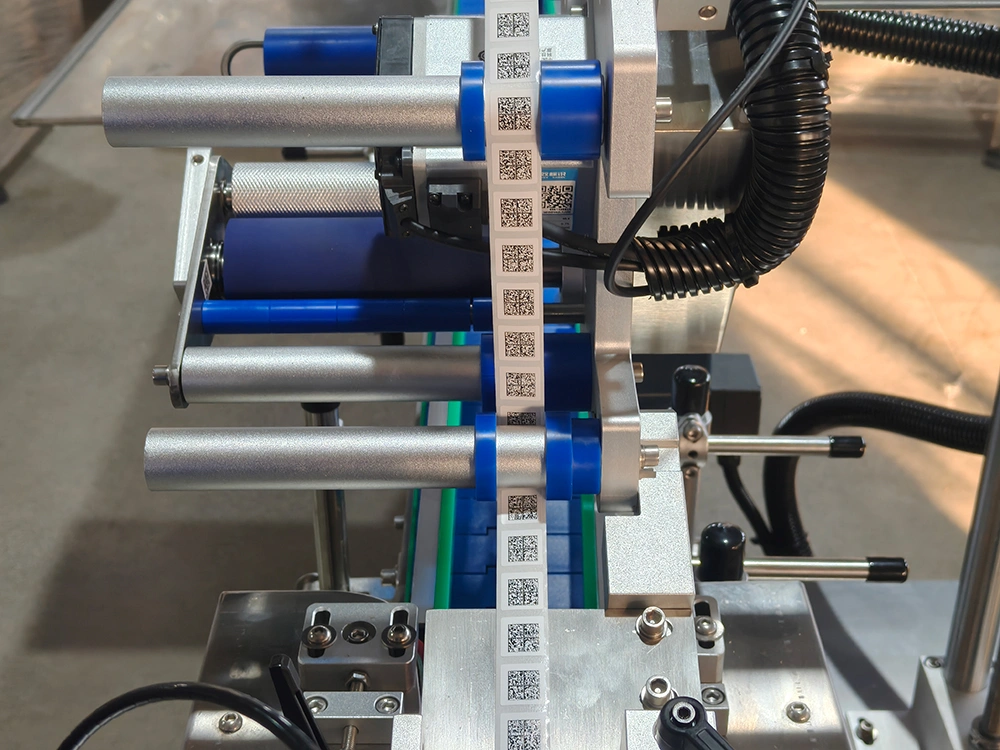

- 2 Labeling Head
- 3 Touchscreen Control Box
- 4 Feed Tray
- 5 Conveyor Belt

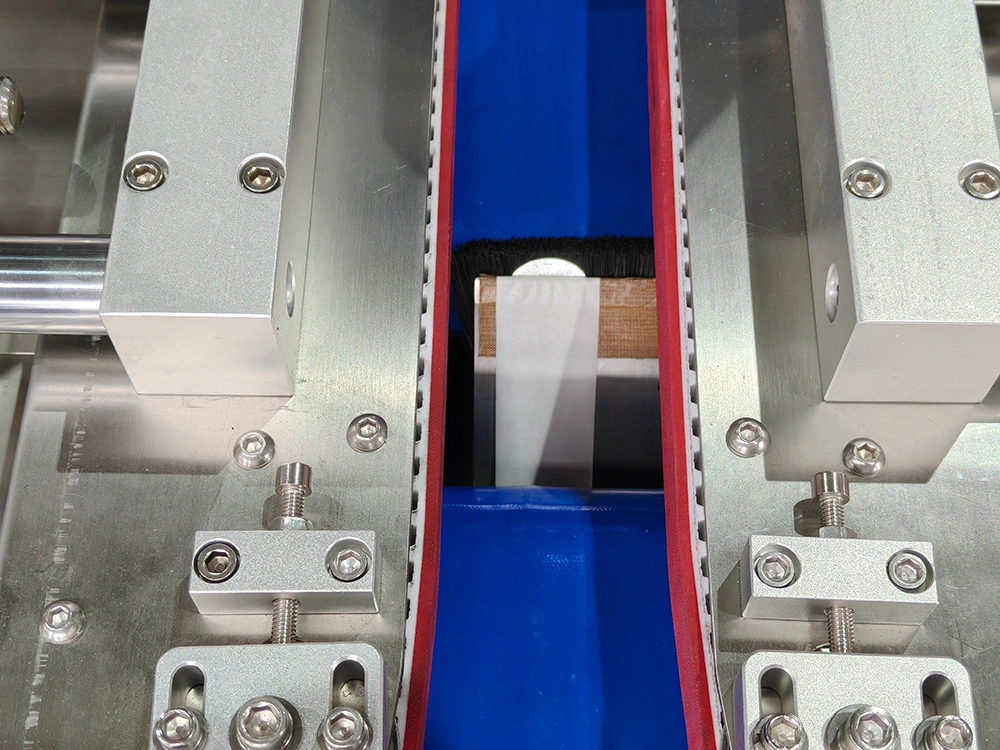

- 6 Bottle Separating Mechanism

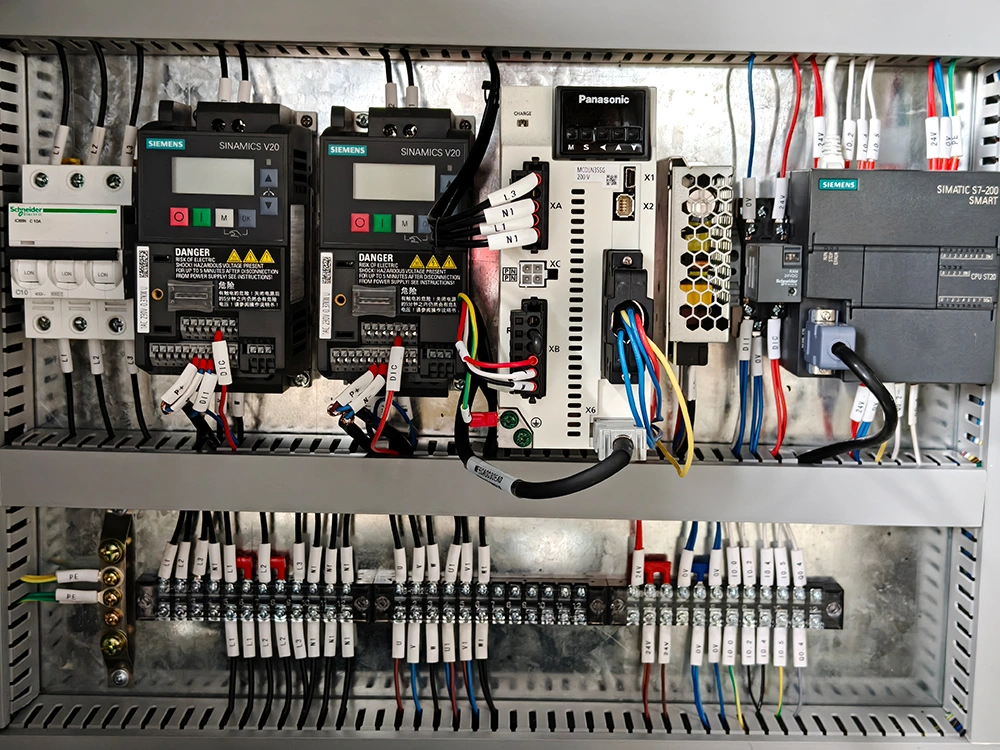

- 7 Electrical Control System
- 8 Machine Frame
| Labeling method | Flat surface labeling |
| Labeling speed | 20–200 pcs/min |
| Labeling accuracy | ±1mm |
| Air supply | 5MPa |
| Suitable container range | Ø30–150mm |
- Product requirements: Select the proper labeling method, such as roll-on labeling or vacuum pad labeling, according to the product size, shape, and surface material.
- Production efficiency: Choose a semi-automatic model for small-batch production or a fully automatic model for high-volume production.
- Label specifications: Confirm equipment compatibility according to label size and material to avoid mismatch during operation.
- Production line integration: For inline production, confirm that the equipment interface is compatible with the existing production line for smooth connection.
LWT can provide customized flat surface labeling solutions according to specific production requirements, helping improve production efficiency and packaging quality. For equipment details, quotation, or trial testing, please contact our service team.
