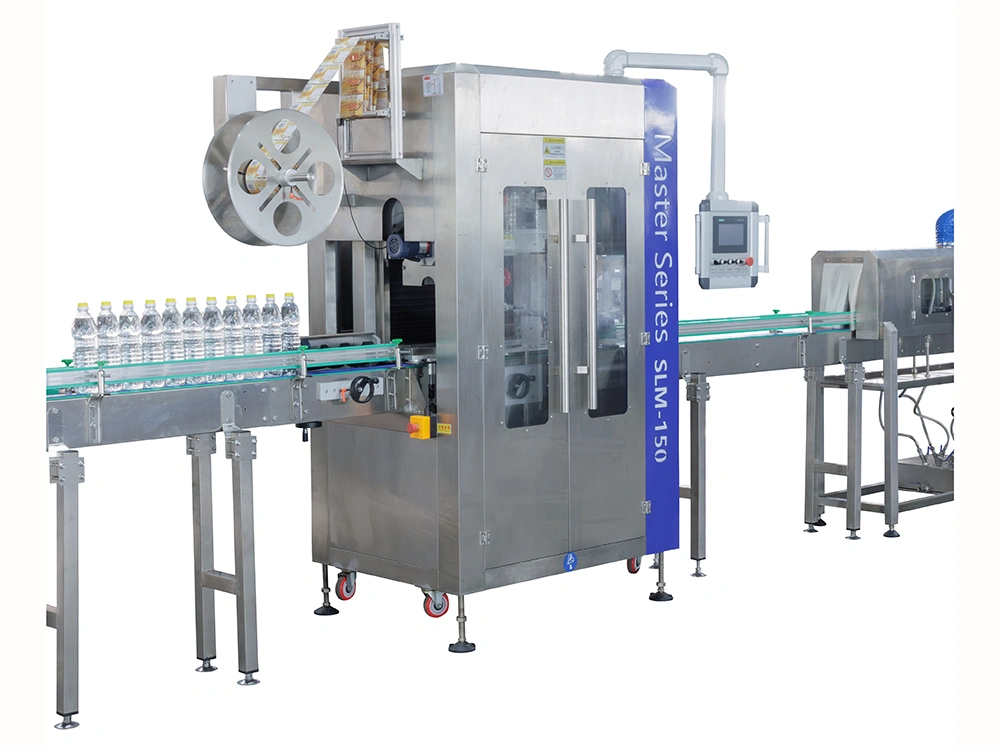

Shrink Sleeve Label Applicator
Applying sleeve labels onto containers automatically and shrinking them tightly via heat tunnels for 360-degree coverage.
The shrink sleeve label applicator is suitable for round, square, and oval bottles or cans. It uses PVC, PET, or OPS shrink film together with heat shrinking to apply labels tightly around the bottle body, bottle mouth, or bottle neck.
With high-speed automatic operation, the sleeve labeling machine supports clear product identification, attractive packaging, and dust protection. It is widely used in food and beverage, pharmaceutical, daily chemical, and liquor industries to improve product appearance and brand recognition.

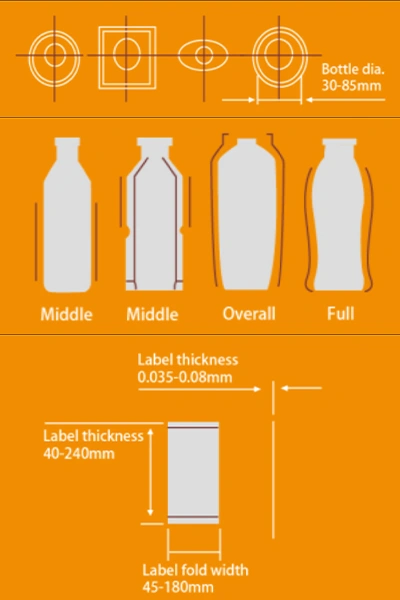

Applications
Specifications
| Model | |
|
|
| Max. speed for 100mm PET round bottles | 100 pcs/min | 200 pcs/min | 400 pcs/min |
| Voltage | AC 220V, 50/60Hz | AC 220V, 50/60Hz | AC 220V, 50/60Hz |
| Power consumption | 3kW | 3kW | 3kW |
| Outline size | 2900(L) × 1200(W) × 2000(H)mm | 2900(L) × 1200(W) × 2000(H)mm | 2900(L) × 1200(W) × 2000(H)mm |
| Applicable container range | Ø30–120mm | Ø30–120mm | Ø30–120mm |
| Applicable label range | Length: 40–240mm; thickness: 0.035–0.082mm | Length: 40–240mm; thickness: 0.035–0.082mm | Length: 40–240mm; thickness: 0.035–0.082mm |
| Label material | PVC, PET, OPS | PVC, PET, OPS | PVC, PET, OPS |
Maximum speed depends on bottle diameter and label length.
Supporting Equipment
-

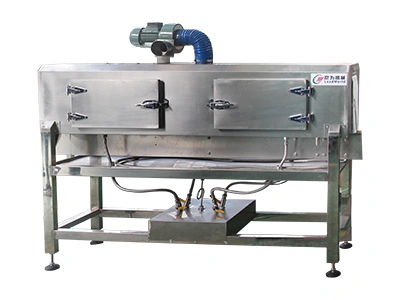

Steam Shrink Tunnel -

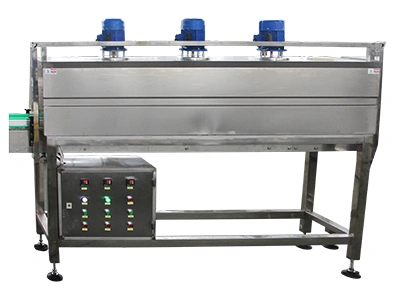

Electric Heat Shrink Tunnel
Features
- Clean shrink-fit labeling: Heat shrinking allows the sleeve label to fit tightly around the container surface without wrinkles, lifted edges, or bubbles. The label follows the container shape closely, providing clear product identification while helping protect the surface from dust and scratches.
- High-speed automated operation: Fully automatic models can run stably at 100–400 bottles/min. Some high-speed configurations can meet large-scale production needs of over 72,000 bottles/hour, supporting 24/7 continuous operation with stable mechanical performance and reduced manual intervention.
- Wide container compatibility: The shrink sleeve label applicator can handle containers with diameters from 28–125mm, including glass bottles, plastic bottles, and metal cans. It is suitable for round, square, oval, and other shaped containers.

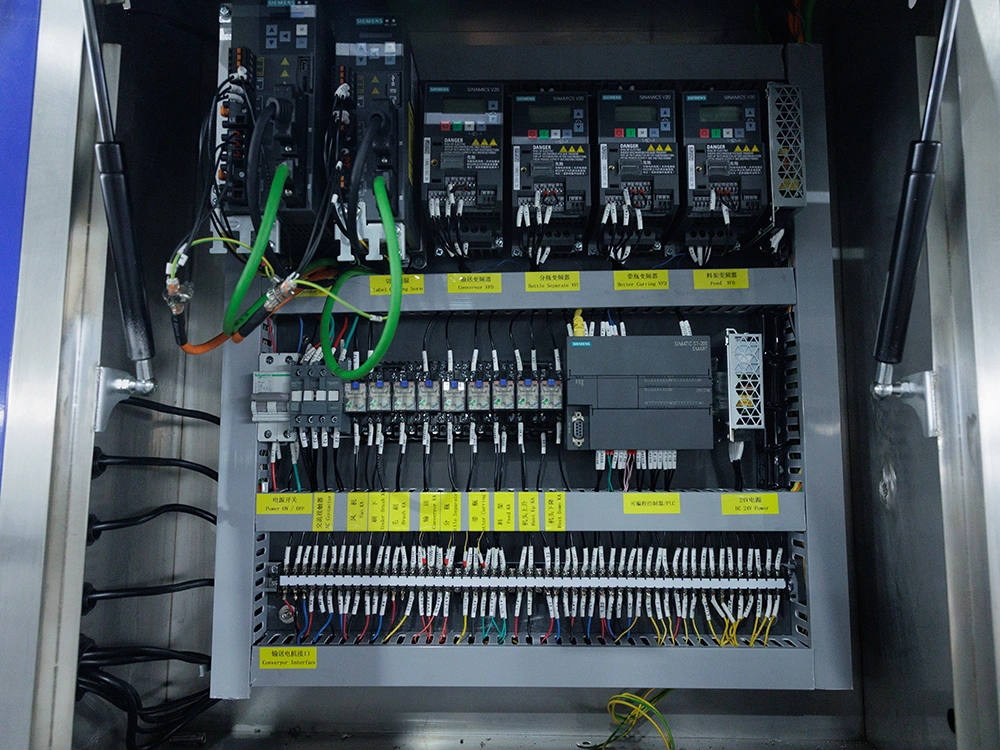

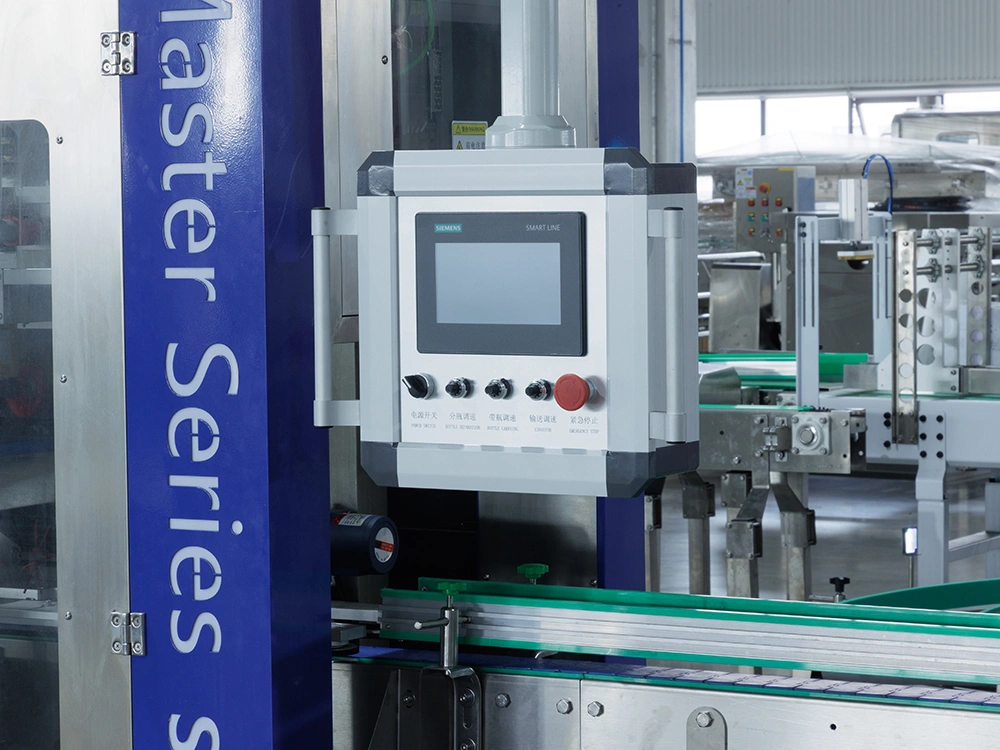

- Intelligent control and accurate labeling: Equipped with PLC control and a high-definition touchscreen, the system supports parameter memory, automatic counting, missing-label and broken-label alarms, speed and temperature adjustment, and other functions. With mechanical transmission, labeling accuracy can be controlled within ±0.5mm, depending on bottle roundness and verticality.

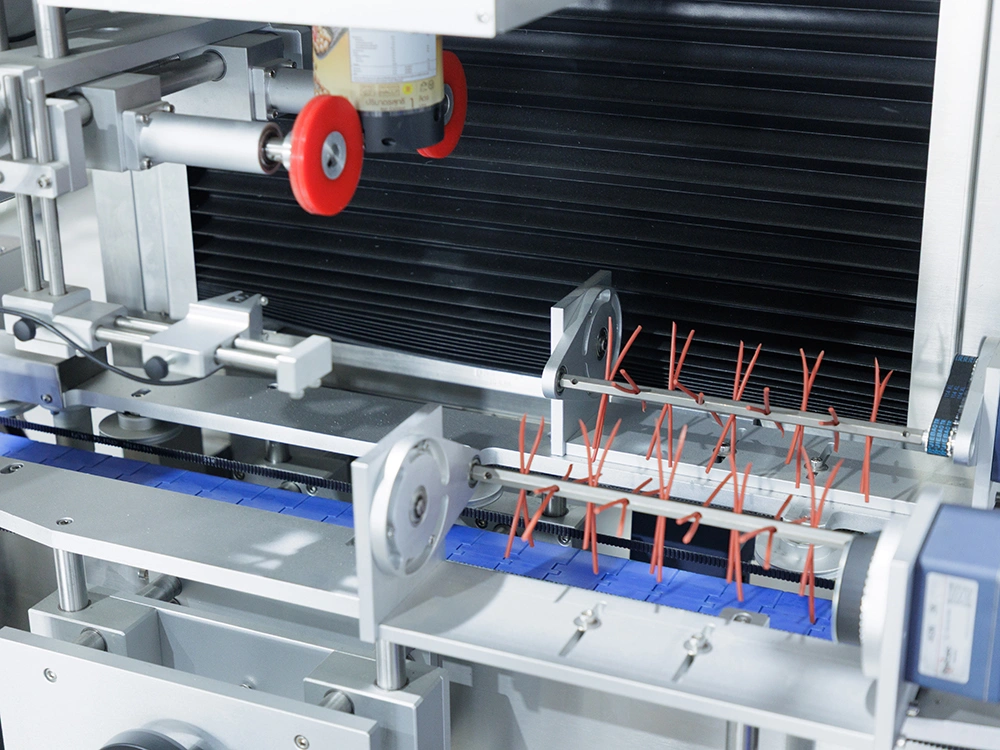

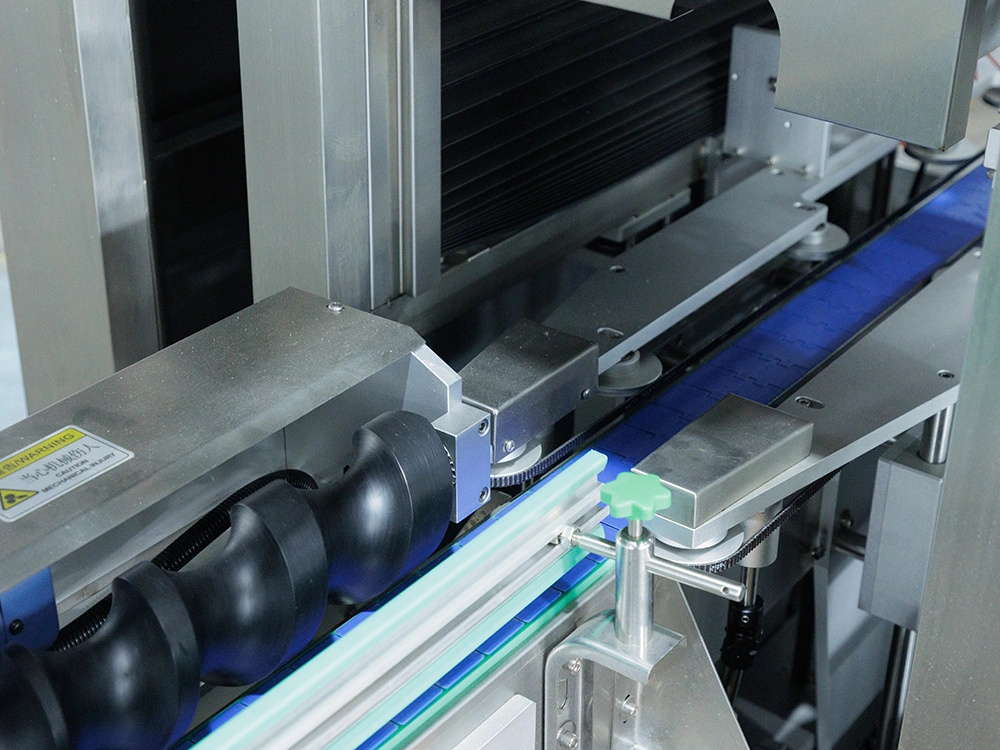

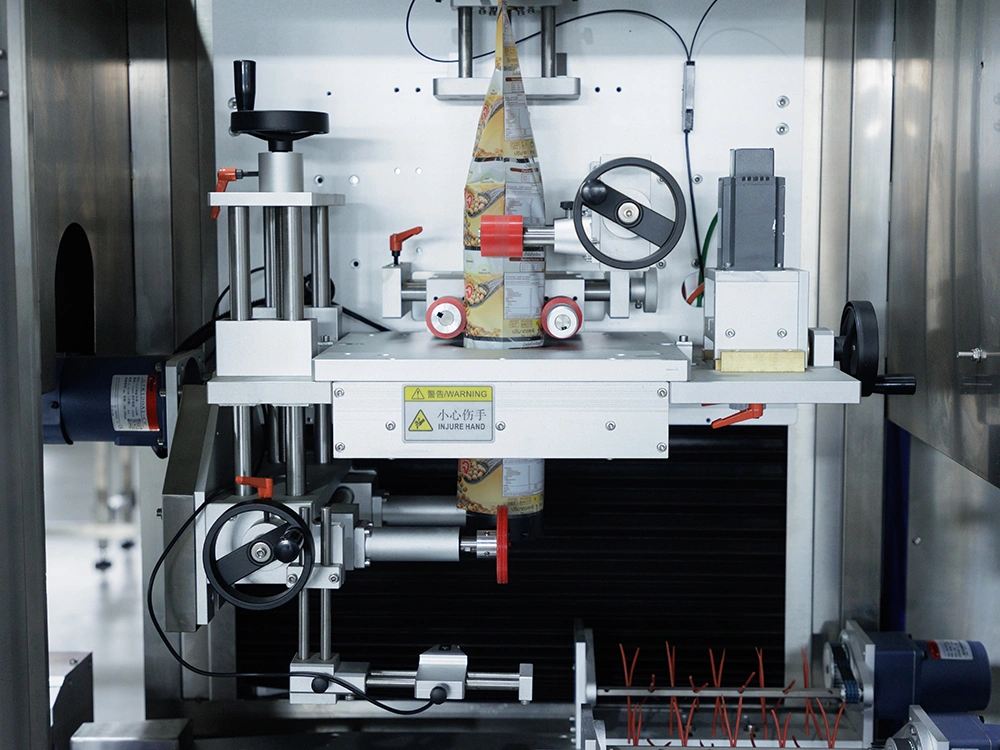

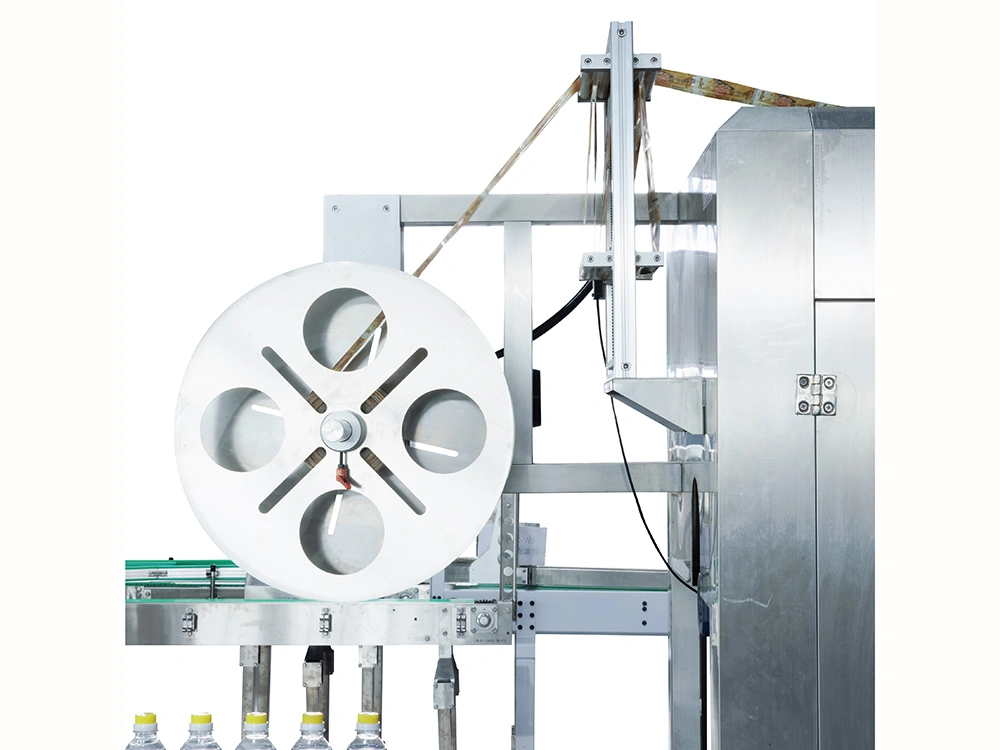

Machine details
