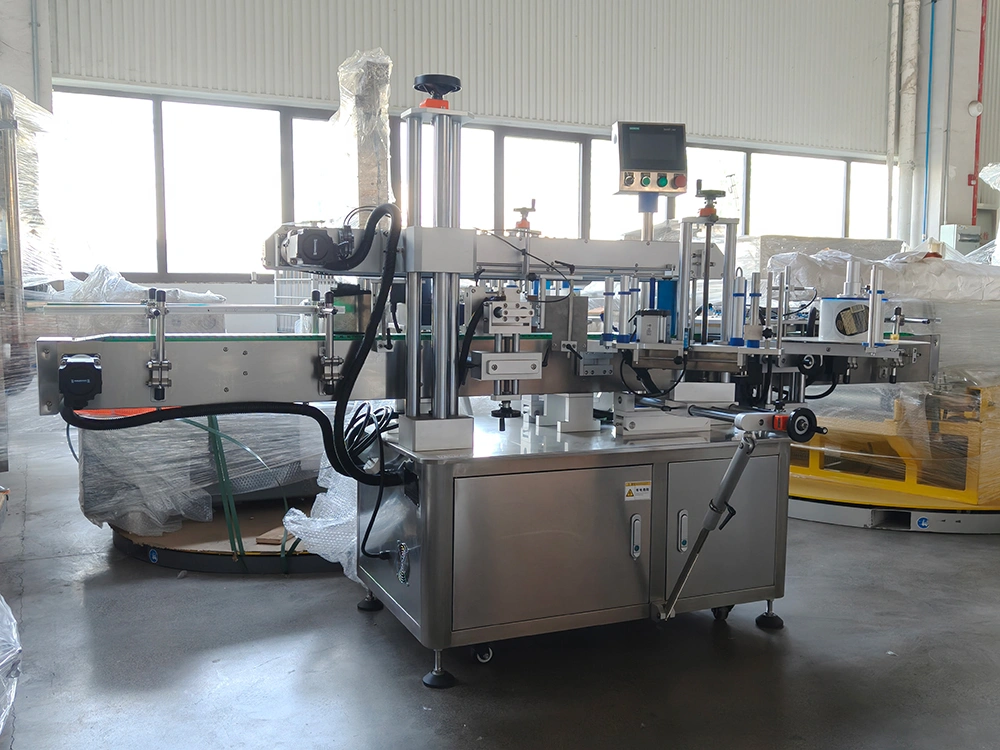

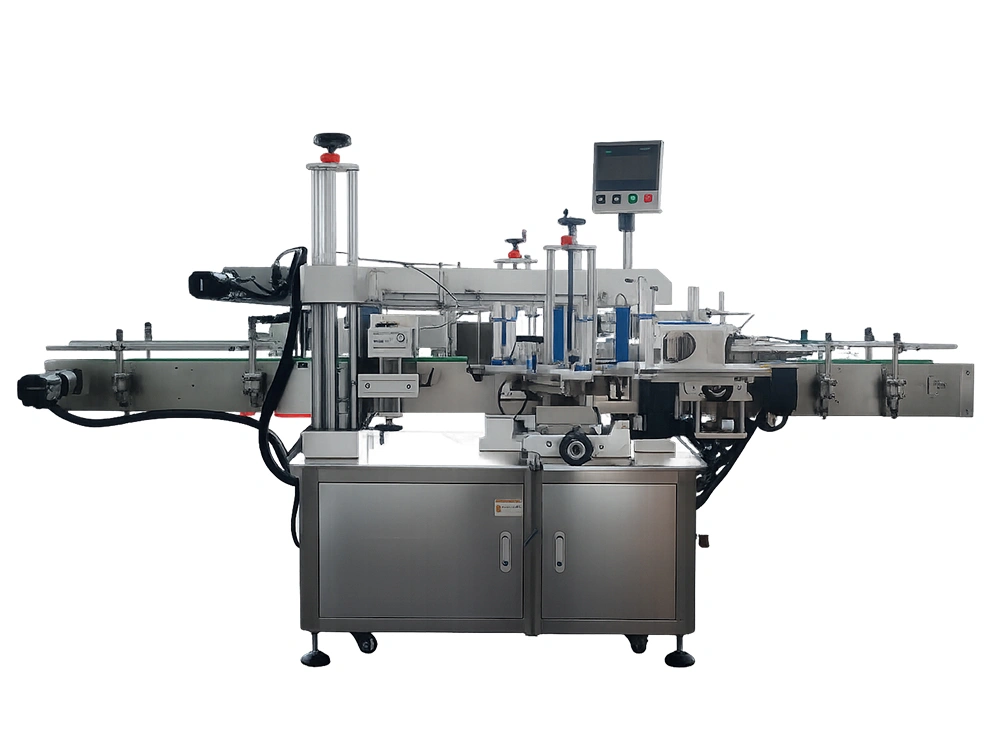

Multi-Function Labeling Machine
Versatile labeling system for round & square bottles (glass & plastic)
The multi-function labeling machine is suitable for square bottles, round bottles, plastic bottles, and glass bottles. Built with a SUS304 stainless steel body, PLC control, touchscreen operation, and servo drive, it supports fast parameter switching and flexible adaptation to multiple bottle types.
The multi-function labeling machine includes equipment status monitoring, automatic stop, and fault alarm functions for stable and efficient operation, making it suitable for packaging applications across different industries.

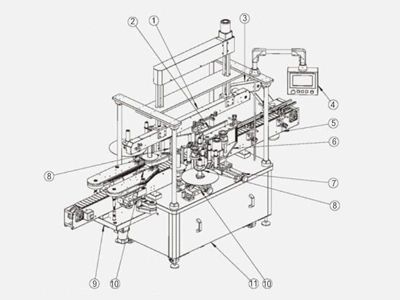

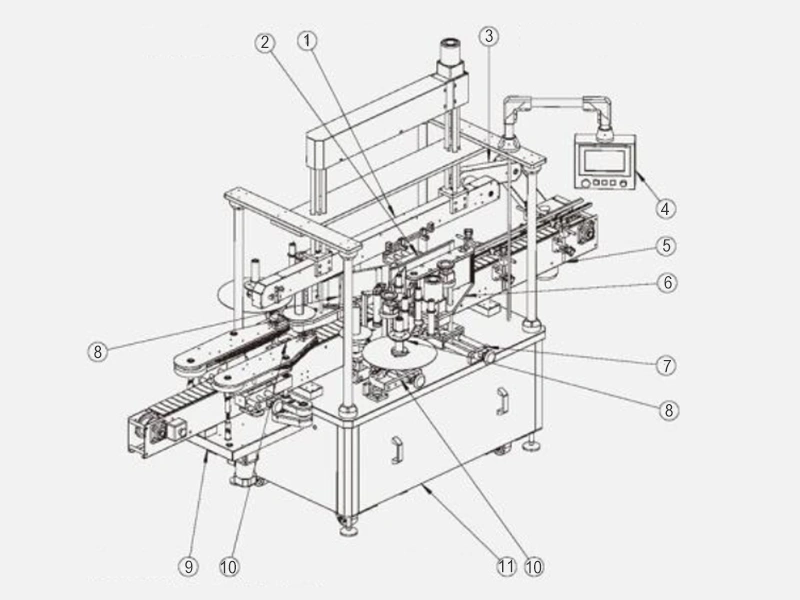

Components
- 1 Upper Pressure Mechanism

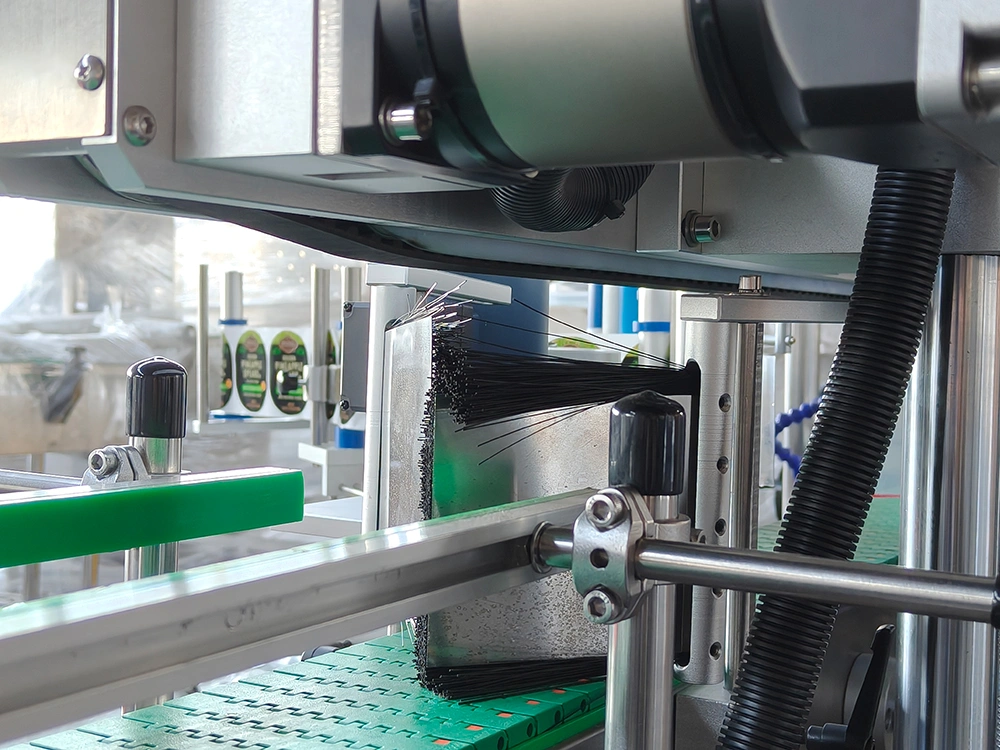

- 2 Sponge Pressing Plate
- 3 Connecting Arm

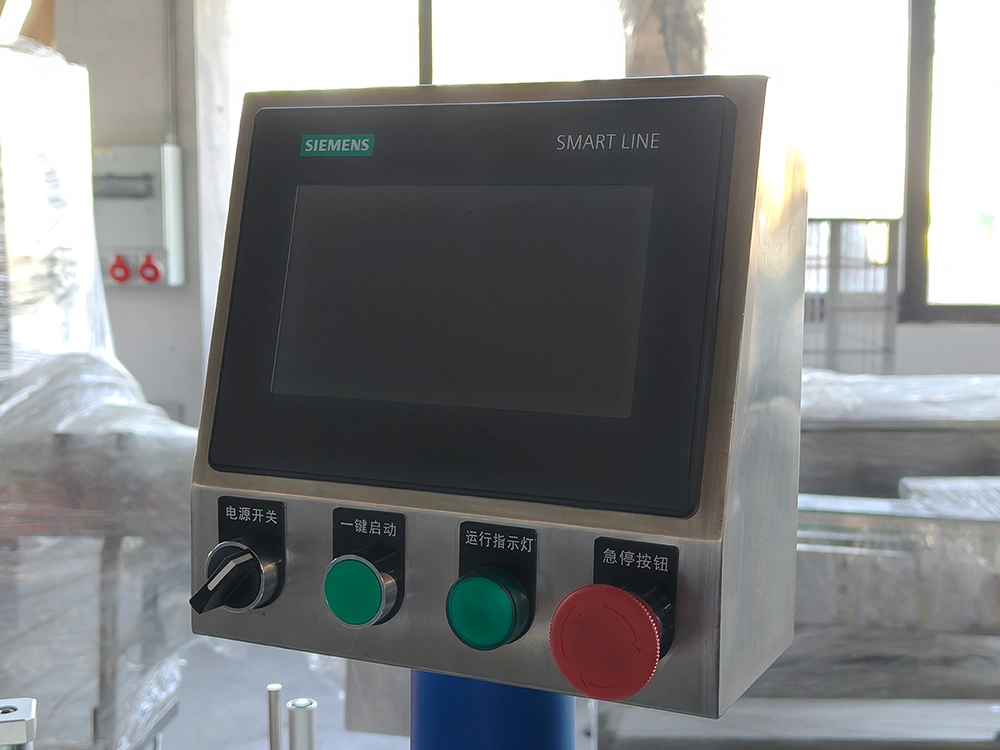

- 4 Touchscreen Operation Panel

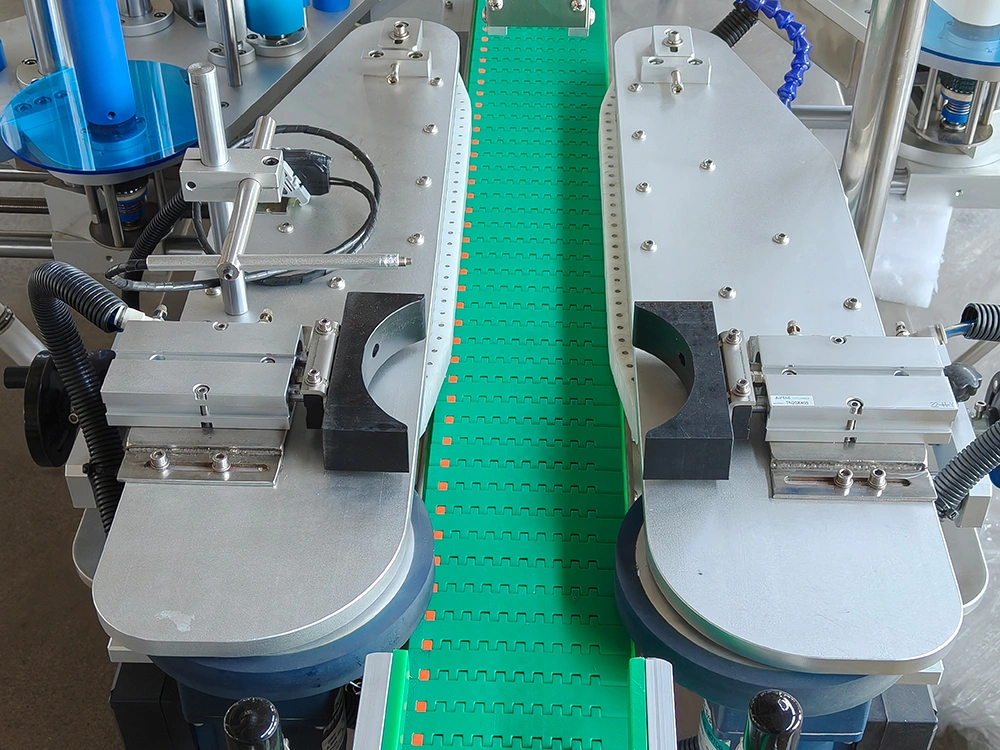

- 5 Conveyor Belt

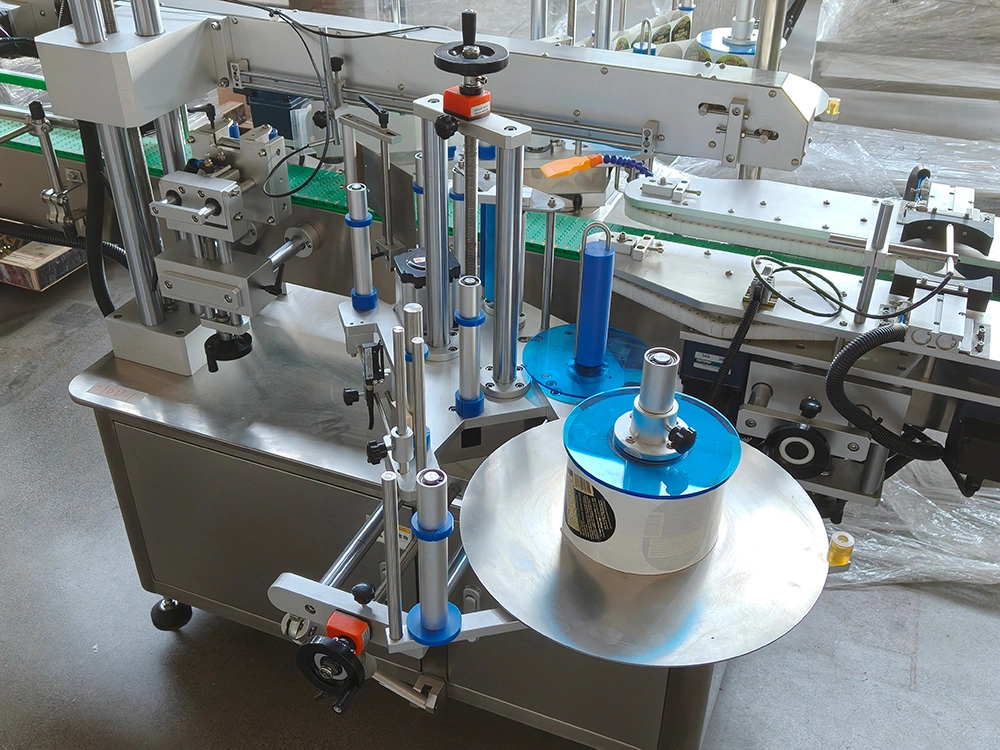

- 6 Round Bottle Labeling Mechanism
- 7 Adjustment Mechanism
- 8 Main Labeling Head
- 9 Separation and Correction Unit
- 10 Universal Adjustment Mechanism
- 11 Power Box
Specifications
| Voltage | AC 220V, 60Hz, 3-phase, customizable |
| Power | 3.7kW |
| Max. labeling speed | 40–70 bottles/min, depending on bottle size |
| Labeling accuracy | ±1mm |
| Printer air supply | 5MPa |
| Label size range | Height: 15–135mm |
| Label roll range | Max. outer diameter: 320mm; inner roll diameter: 76mm |
| Suitable container range | Length 15–150mm, width 10–100mm, height 40–350mm |
| Label gap | 3–4mm |
| Distance between label edge and backing paper bottom edge | 2mm |

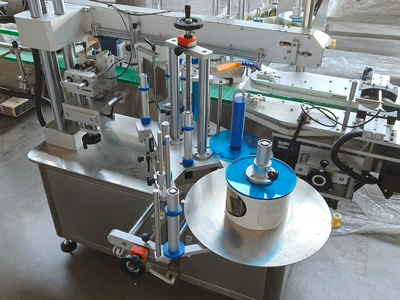

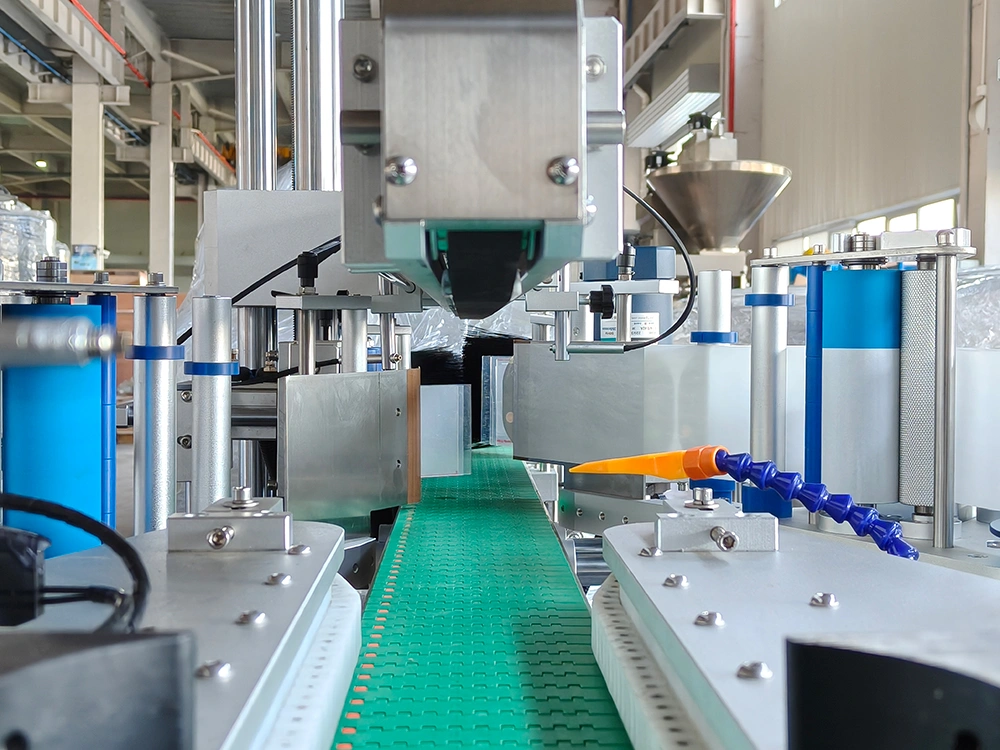

Machine details
