Cobot Palletizer
Stacking cases onto pallets automatically using collaborative robots with human-safe interaction and compact footprints.

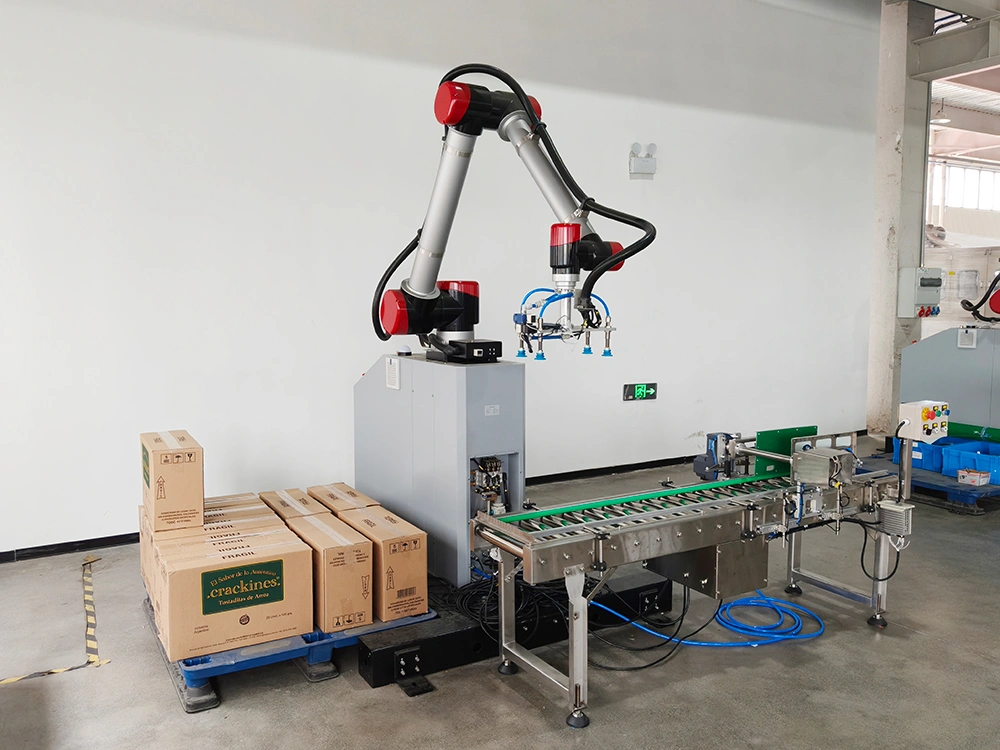

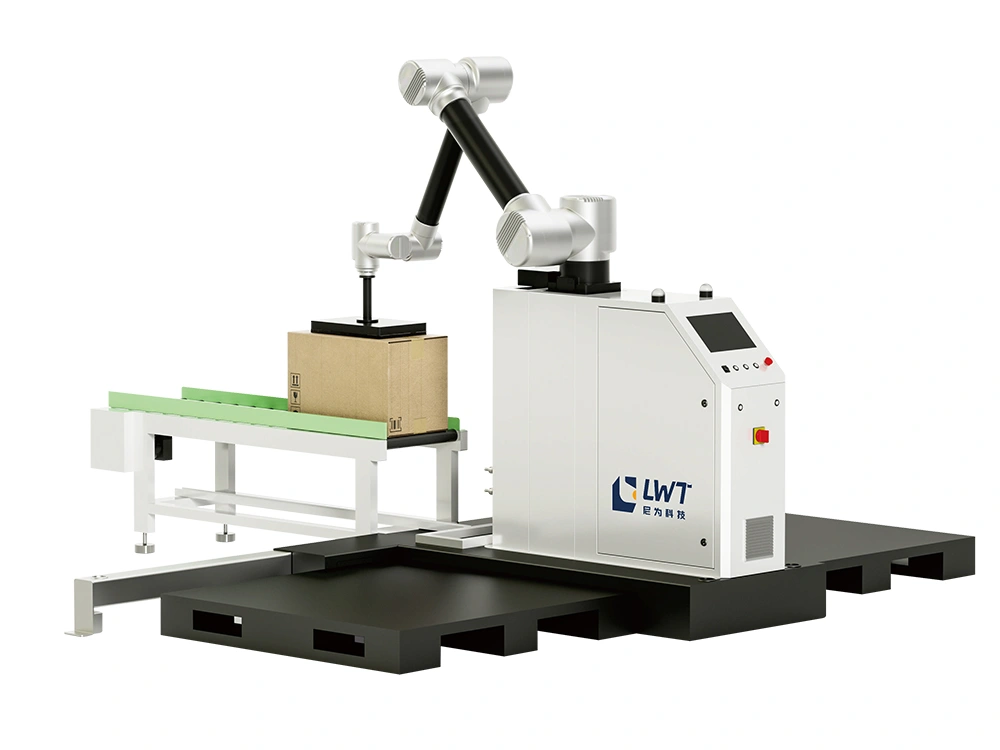

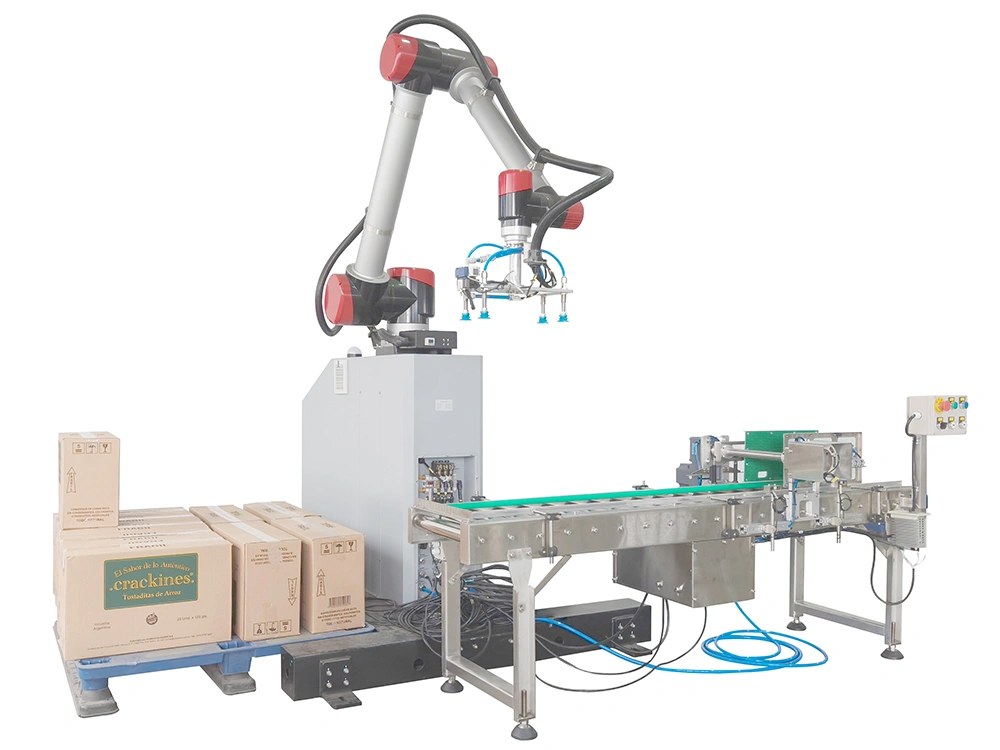

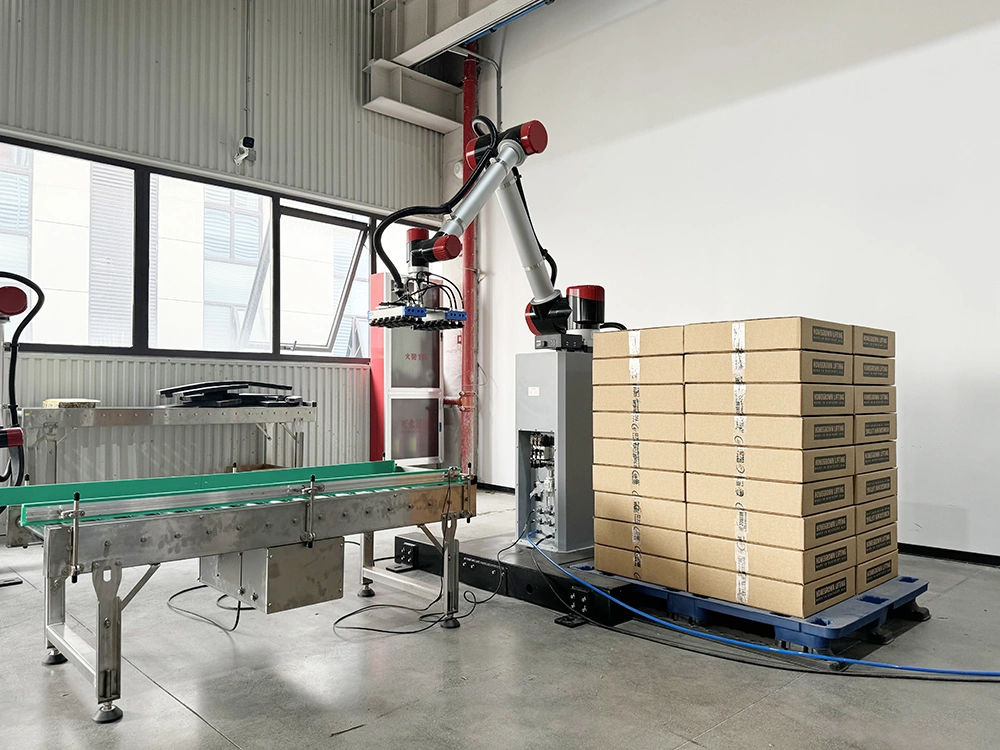

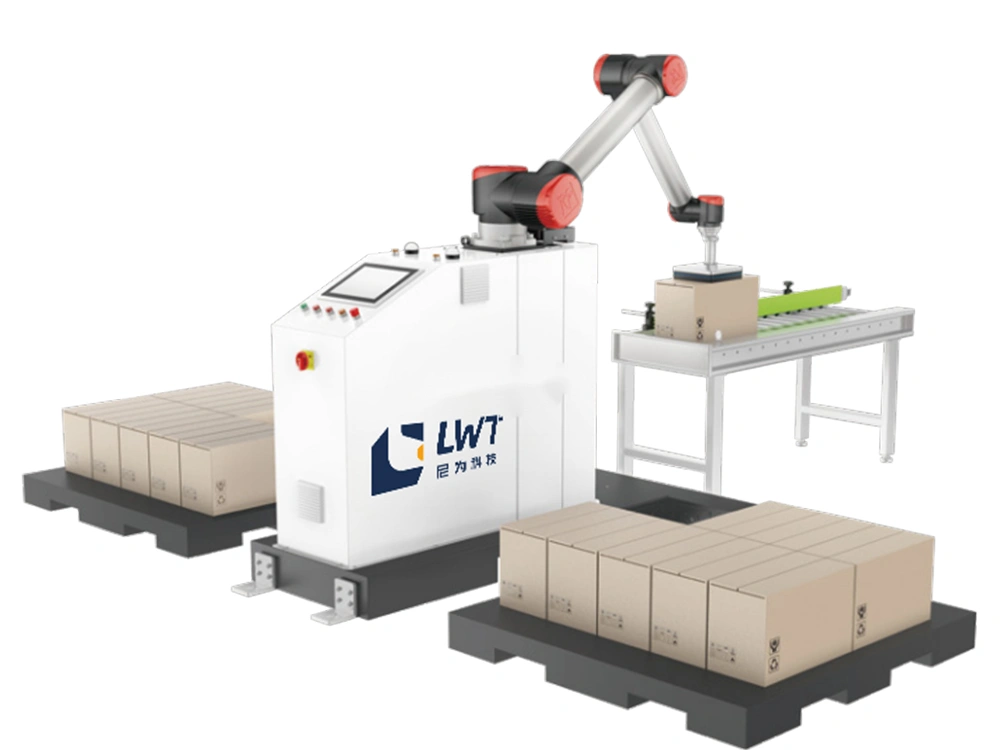

The cobot palletizer combines mechanical structure with programmable robot control for flexible automated palletizing. It can handle two product types at the same time, supports a maximum pallet size of 1300 × 1200mm, and allows up to 800 stacking paths to be configured.
With fast installation and programming, a new stacking path can be set in about 5 minutes. The collaborative robot palletizer also supports label orientation positioning and is widely used in food, pharmaceutical, 3C electronics, daily chemical, and printing industries for efficient and stable automated palletizing.

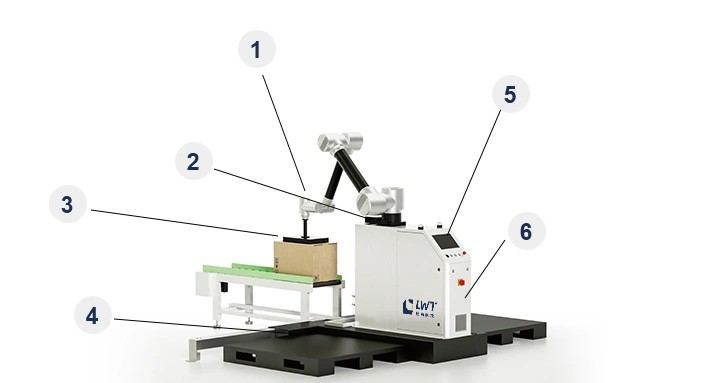

Components
- 1 Collaborative Robot
- 2 Machine Frame Assembly

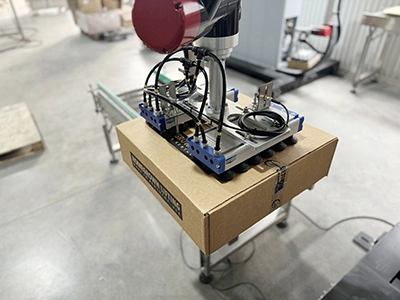

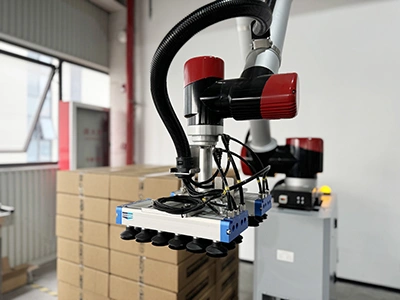

- 3 End Effector
- 4 Pallet Positioning System
- 5 Operating System
- 6 Electrical Control Cabinet
Specifications
| Model | | | | |
| Load | 12kg | 20kg | 30kg | 40kg |
| Working radius | 1900mm | 1600mm | 1460mm | 1700mm |
| Horizontal reach | Palletizing robot horizontal coverage radius: 1900mm | Palletizing robot horizontal coverage radius: 1600mm | Palletizing robot horizontal coverage radius: 1460mm | Palletizing robot horizontal coverage radius: 1700mm |
| Vertical distance | Fixed type H1 = 1700mm | Fixed type H1 = 1600mm | Fixed type H1 = 1600mm | Fixed type H1 = 1600mm |
| Stacking speed | ≤8 pcs/min | ≤8 pcs/min | ≤6 pcs/min | ≤6 pcs/min |
| Repeat positioning accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm |
| Communication mode | TCP/IP | TCP/IP | TCP/IP | TCP/IP |
| IP rating | IP54 | IP54 | IP54 | IP54 |
| Temperature range | 0–55°C | 0–55°C | 0–55°C | 0–55°C |
| Max. power dissipation | 2.5kW | 2.5kW | 3.3kW | 4kW |
| Electrical cabinet power supply | Single-phase 220V / 50Hz | Single-phase 220V / 50Hz | Single-phase 220V / 50Hz | Single-phase 220V / 50Hz |
| Machine weight | ≈260kg | ≈260kg | ≈260kg | ≈360kg |
| Floor area | 1505 × 1716mm | 1505 × 1716mm | 1505 × 1716mm | 1505 × 1716mm |

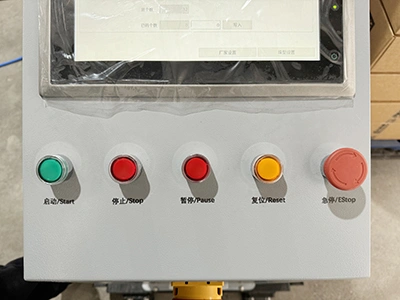

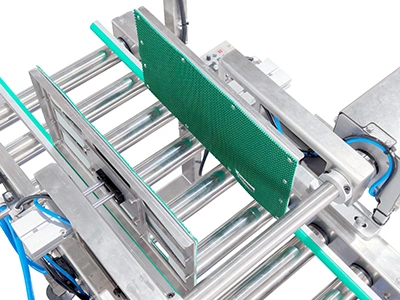

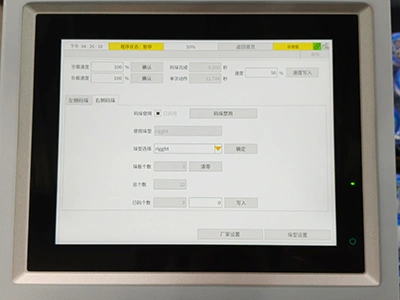

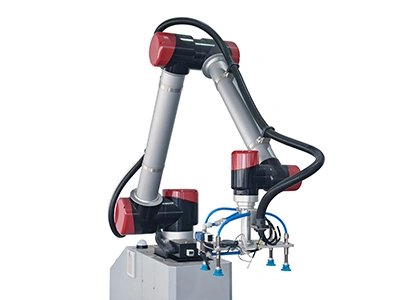

Machine details
