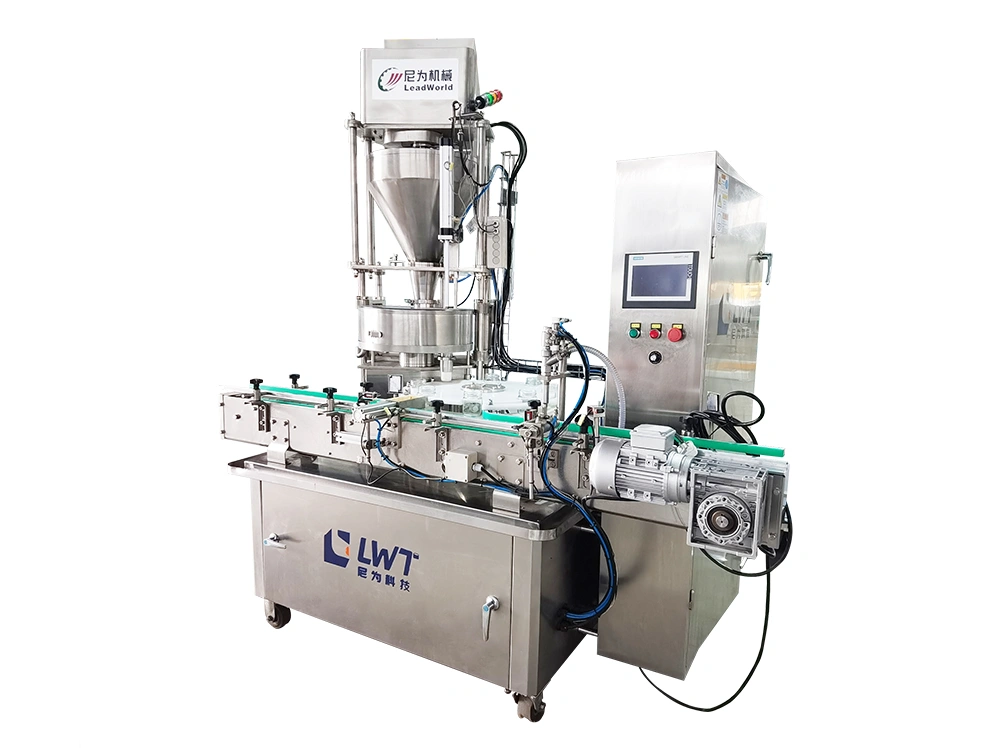

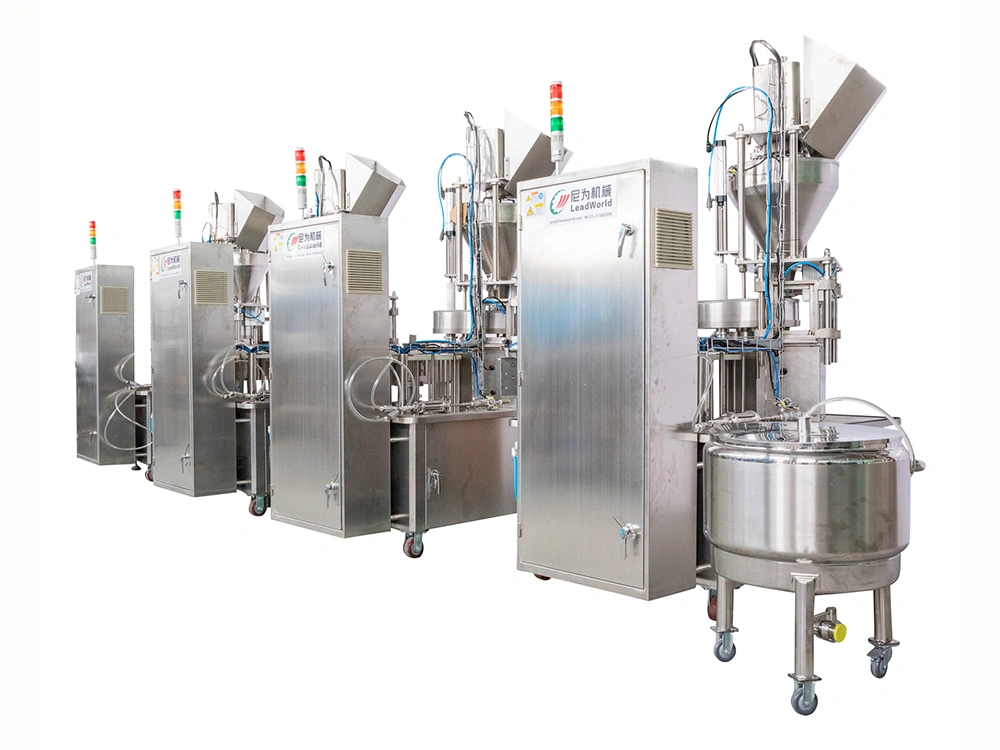

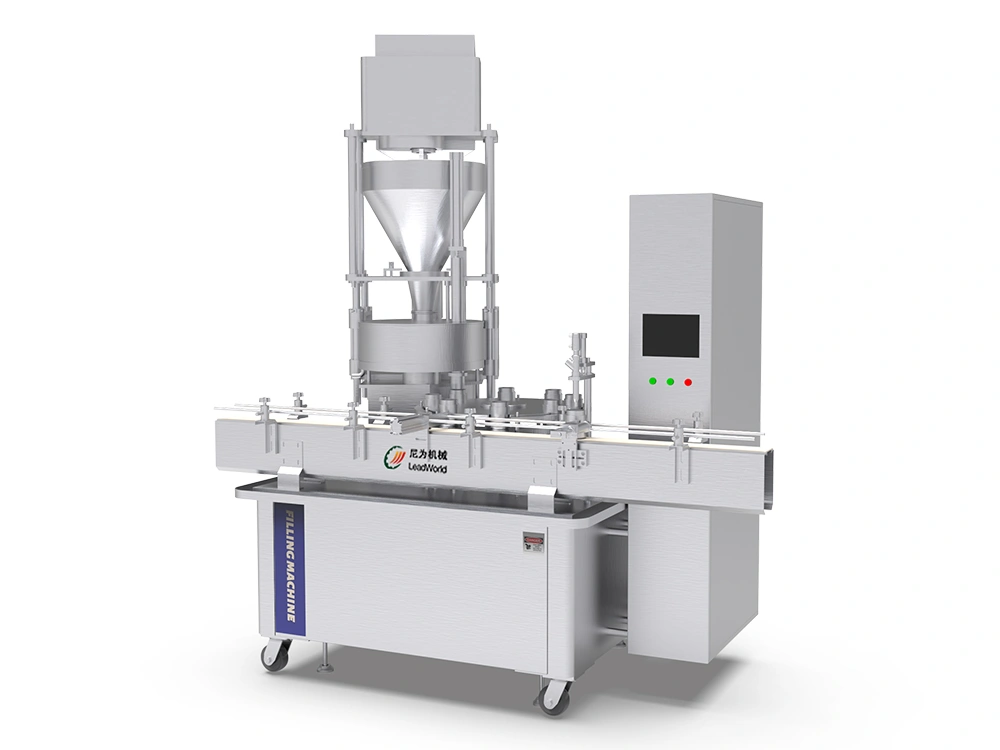

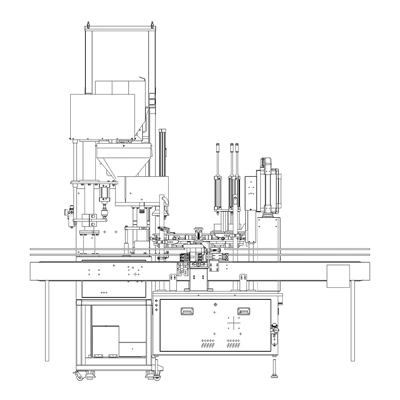

Volumetric Cup Filling Machine

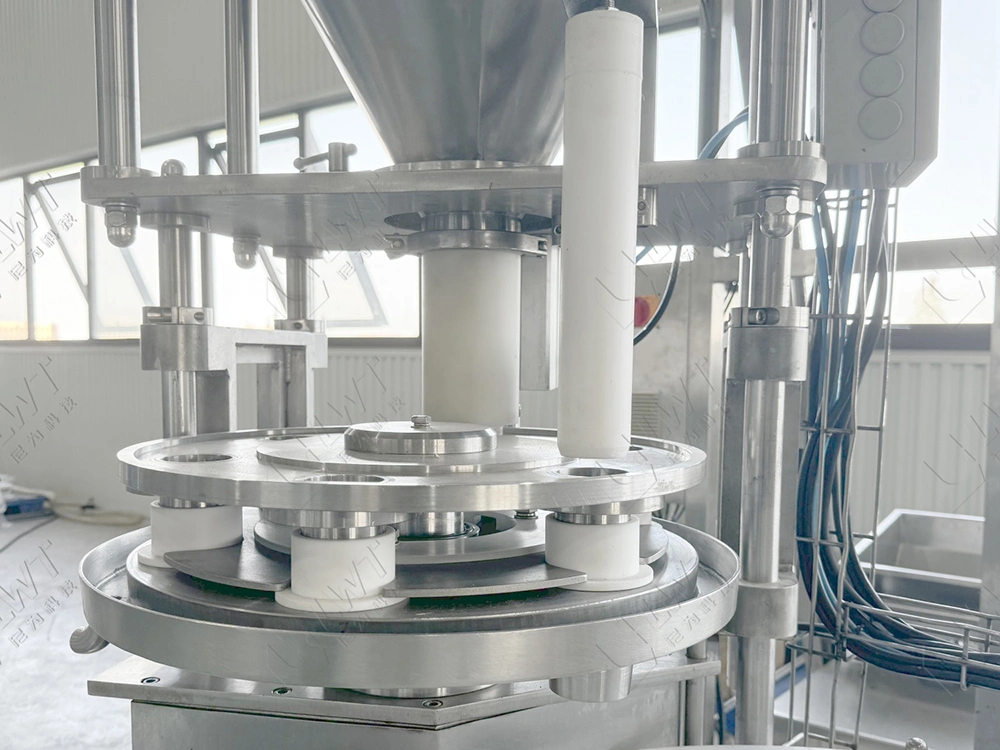

The volumetric cup filling machine is suitable for bottles, tin cans, plastic containers, and wide-mouth jars. It integrates automatic feeding when material is insufficient, screw cup dosing, filling, oil filling, and conveying in one system.

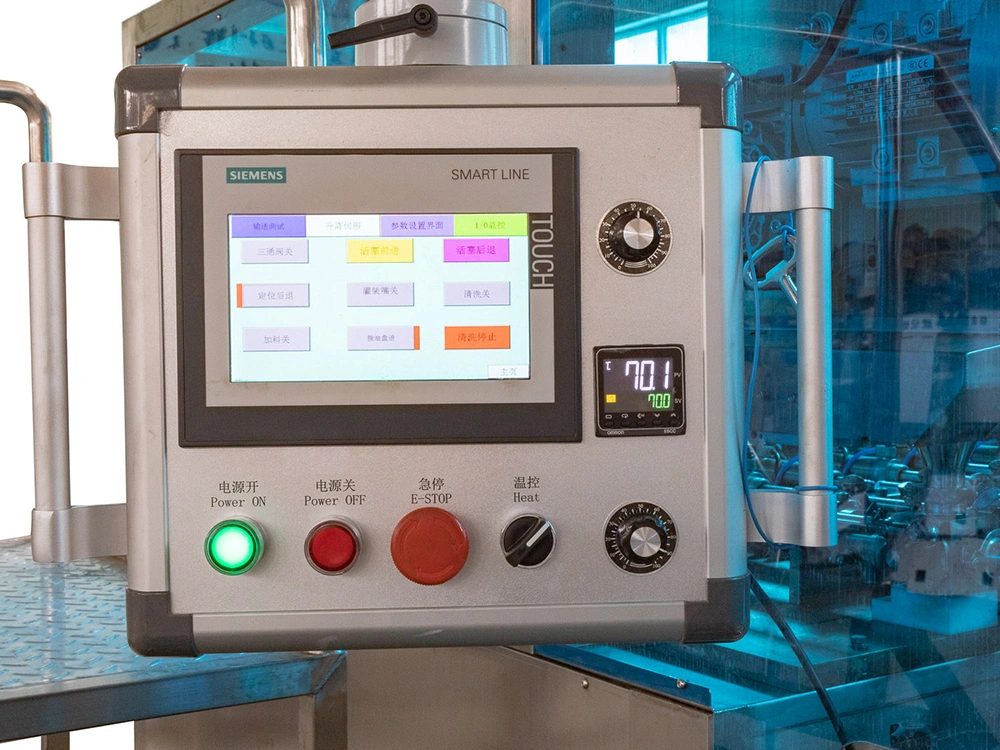

Built with a SUS304 stainless steel frame, IP65 protection, PLC control, color touchscreen operation, and servo drive, the volumetric cup filler supports materials with poor flowability. It also features intelligent sensing, simple operation, easy cleaning, and efficient, reliable production.
Applications
Suitable for filling pickled vegetable products such as zhacai, dried radish, kimchi, preserved mustard greens, olive vegetables, shredded kelp, mushroom sauce, chili sauce, and other similar products.
Specifications
| Model | ||
| Container specification | Ø50–100mm | Ø50–150mm |
| Pickled vegetable filling range | 20ml–300ml | 50g–5000g |
| Oil filling range | 5ml–100ml | 5ml–60ml, 50ml–150ml |
| Packaging speed | 30–50 pcs/min | 10–25 pcs/min |
| Filling accuracy | <±1% | ≤±1% |
| Total power | 3P, 380V, 4.5kW | 3P, 380V, 3kW |
| Machine dimensions | 1700 × 1500 × 2300 | 1700 × 1200 × 2300 |

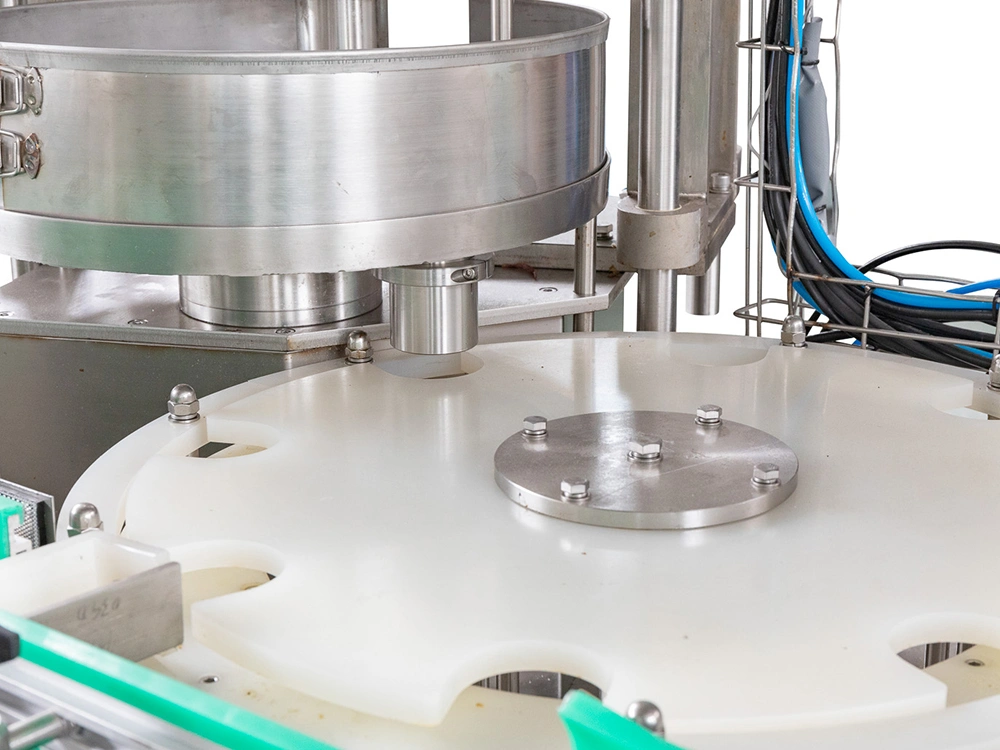

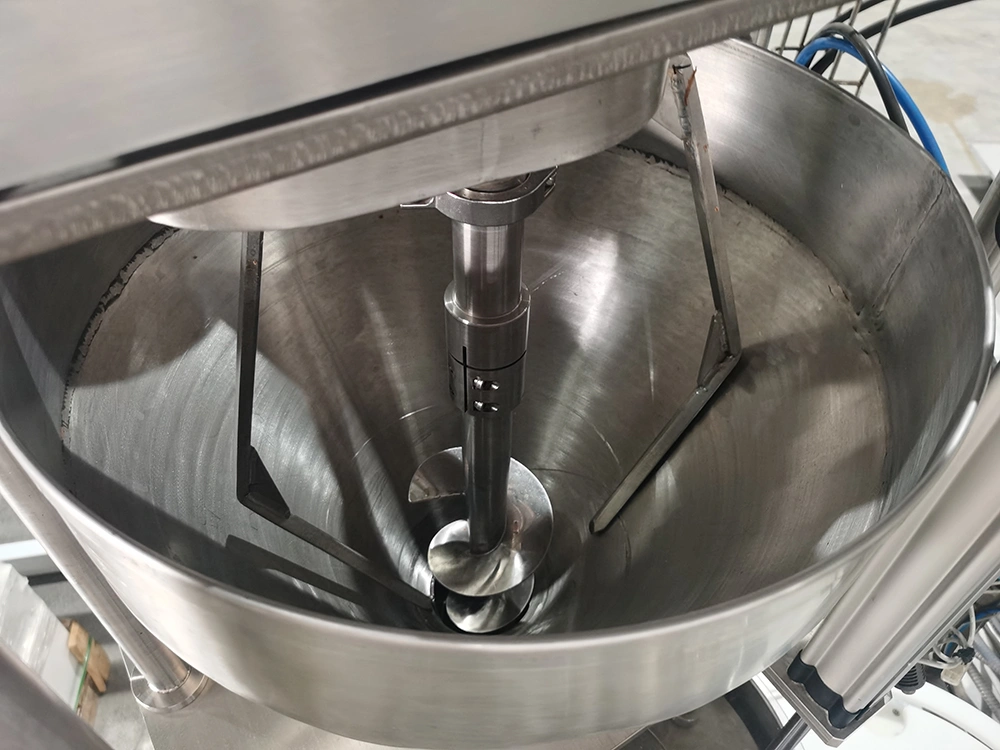

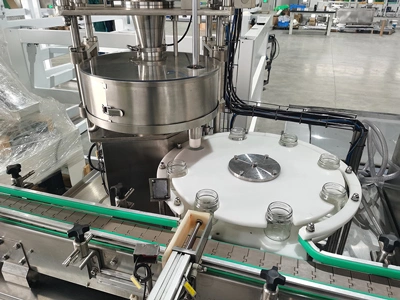

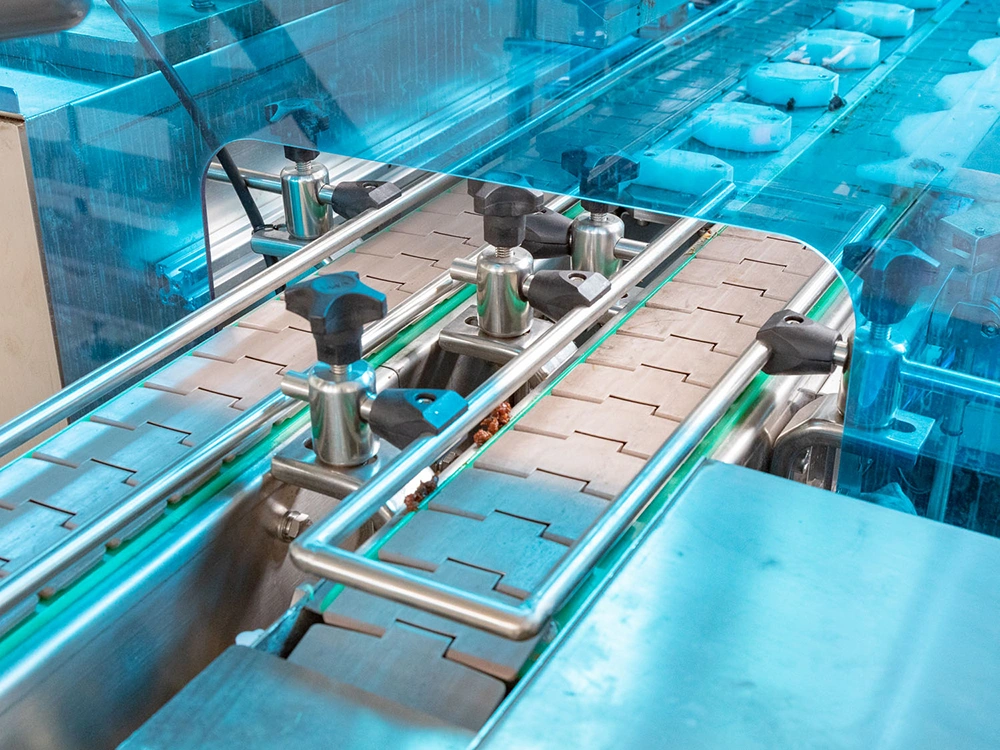

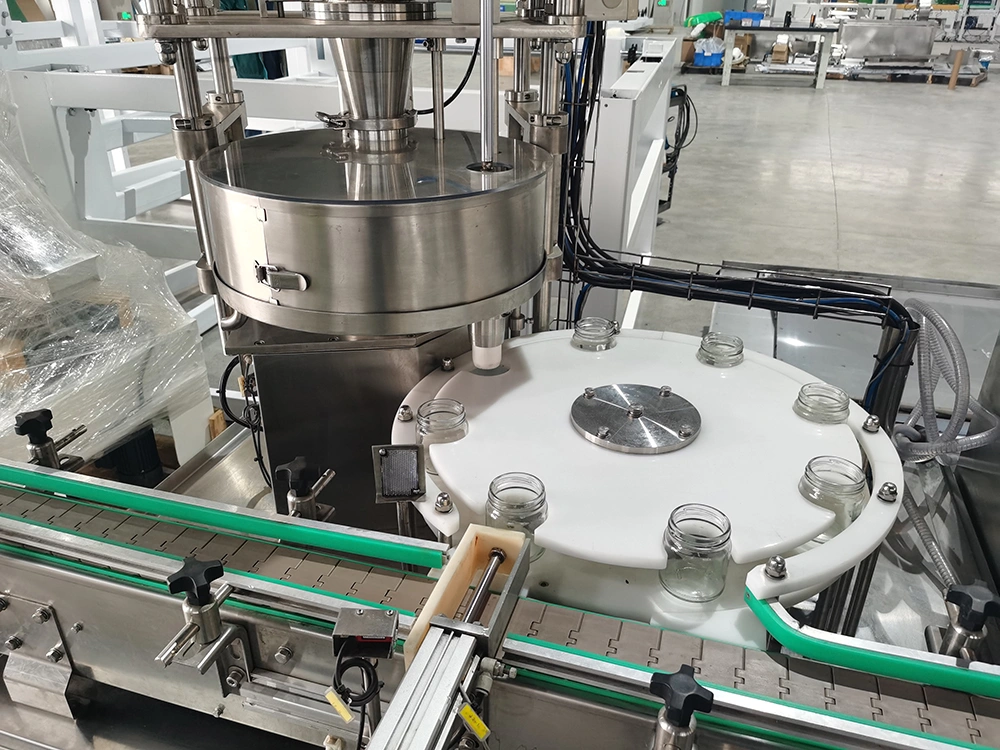

Machine details
