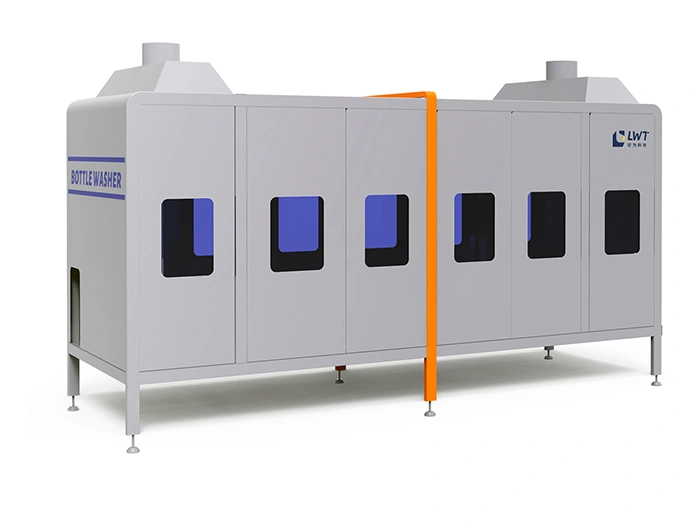

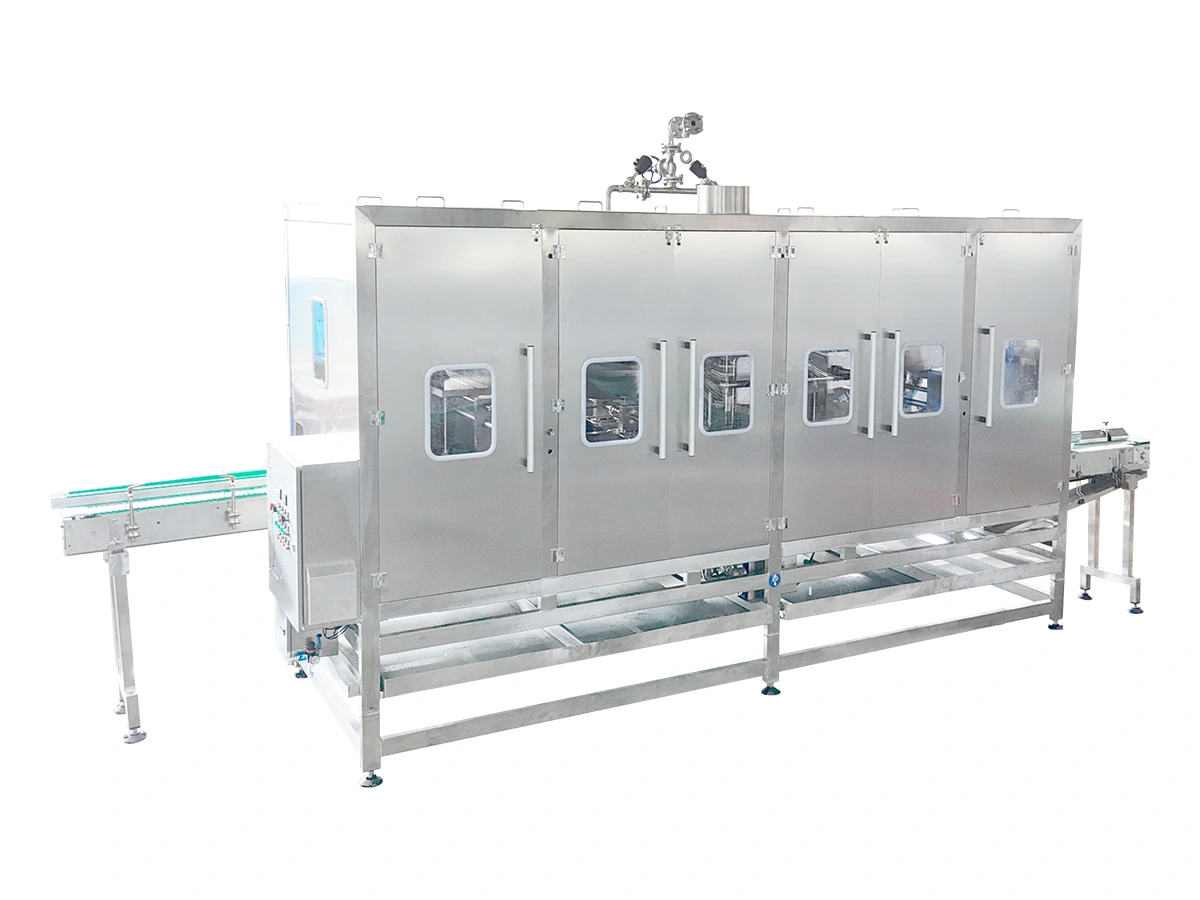

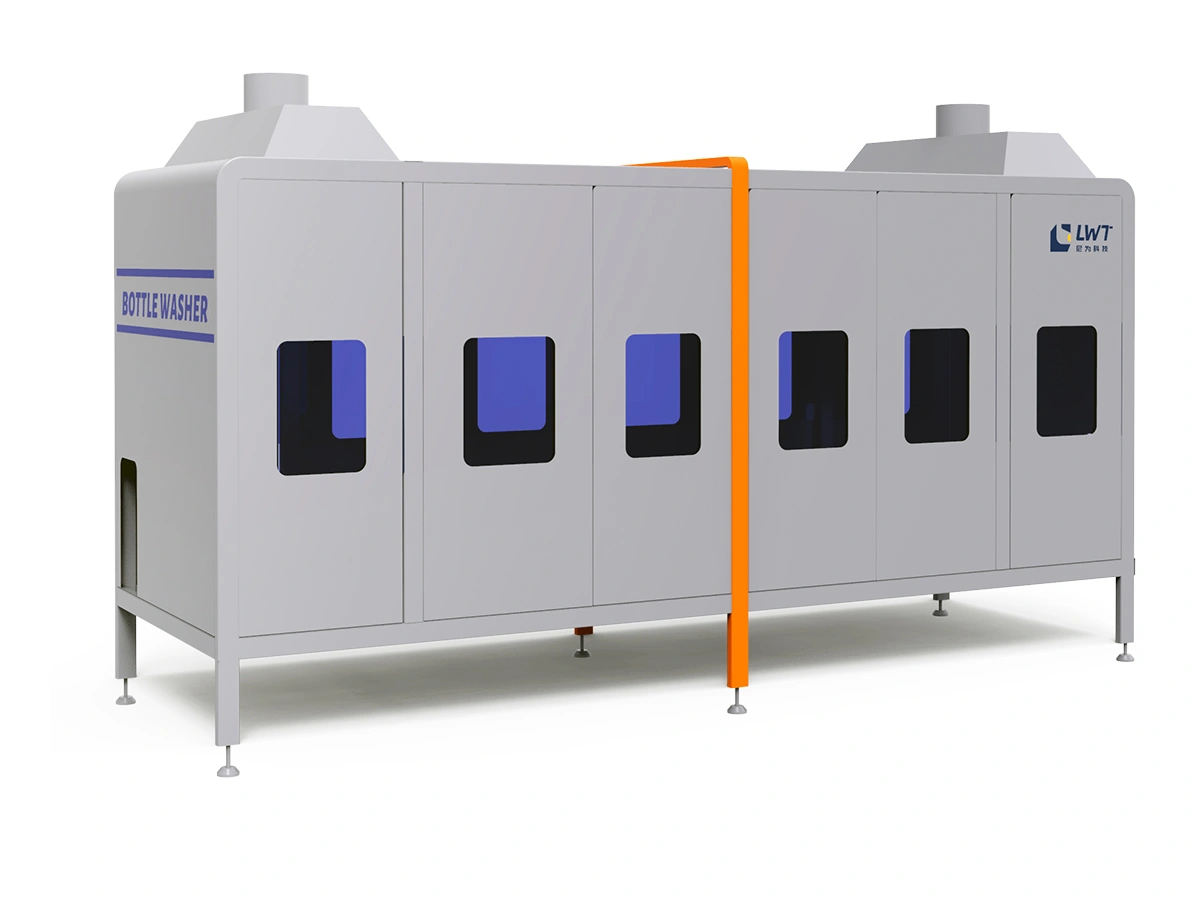

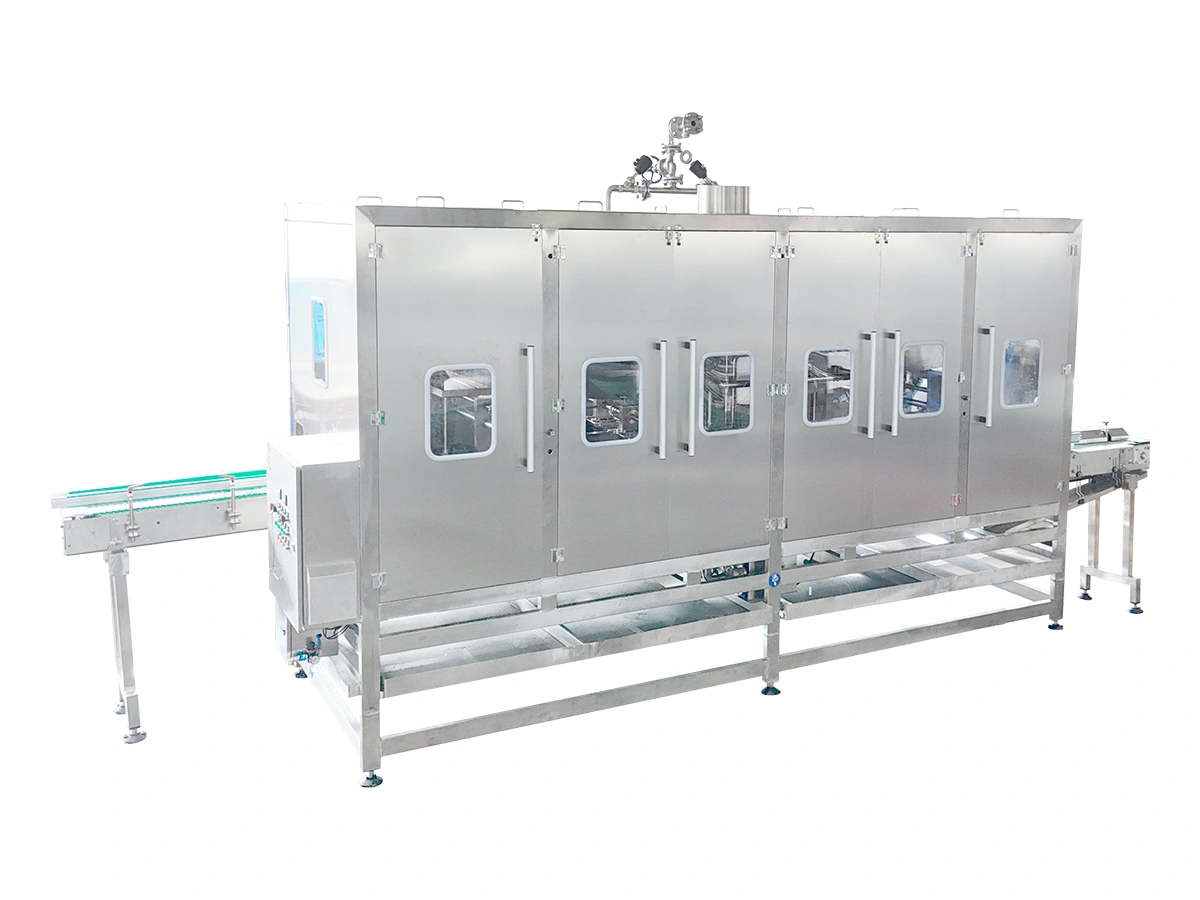

Gripper Bottle Cleaner, Gripper Conveyor Rinser
Inverting jars or cans vertically using side grippers to rinse and drain containers thoroughly before filling.
The gripper bottle cleaner is built with high-temperature-resistant grippers and 304 stainless steel. Its modular design allows different containers, including glass bottles, PET plastic bottles, and cans, to be cleaned by simple adjustment without changing parts.
Equipped with PLC control, the gripper conveyor rinser supports highly automated operation and bottle drying functions. With strong container adaptability and easy operation, it is widely used for bottle cleaning and drying in food, beverage, pharmaceutical, and daily chemical production lines.

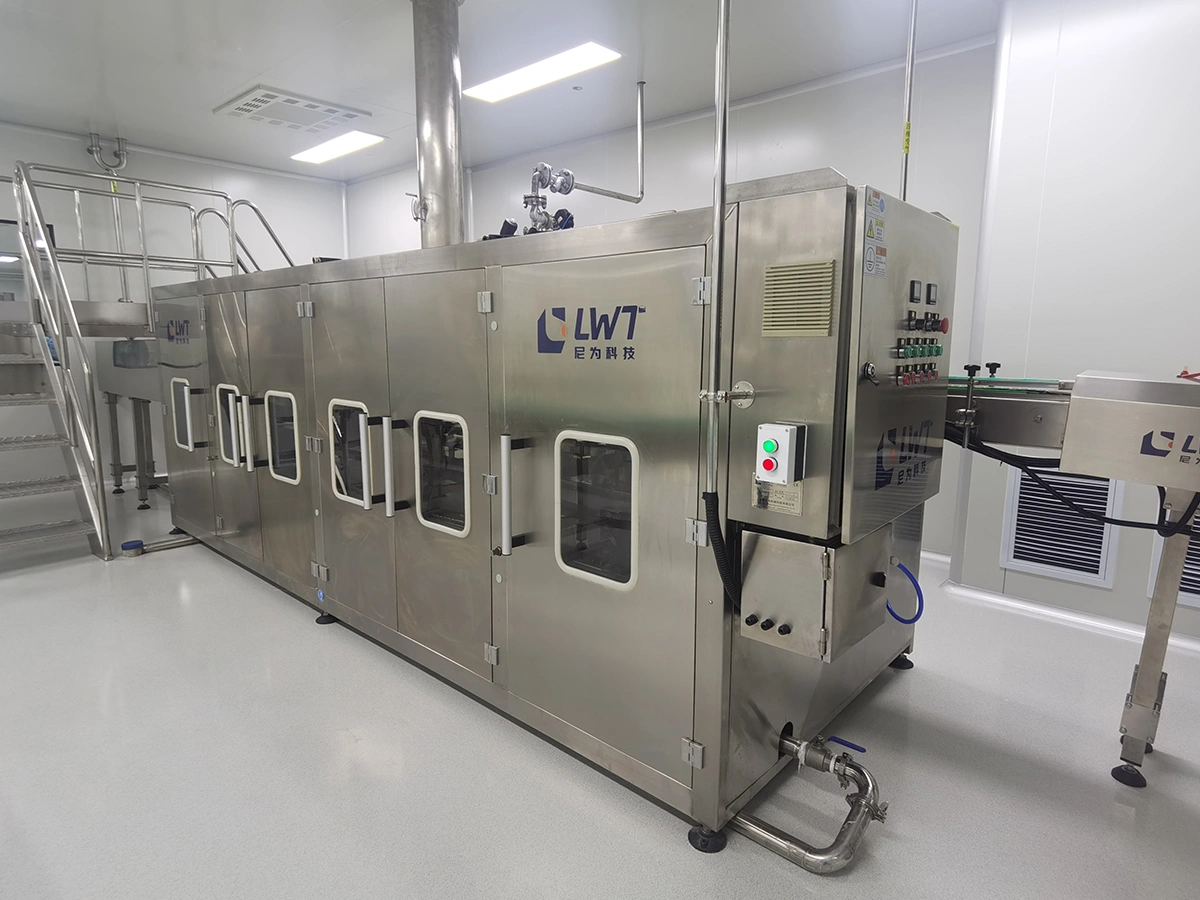

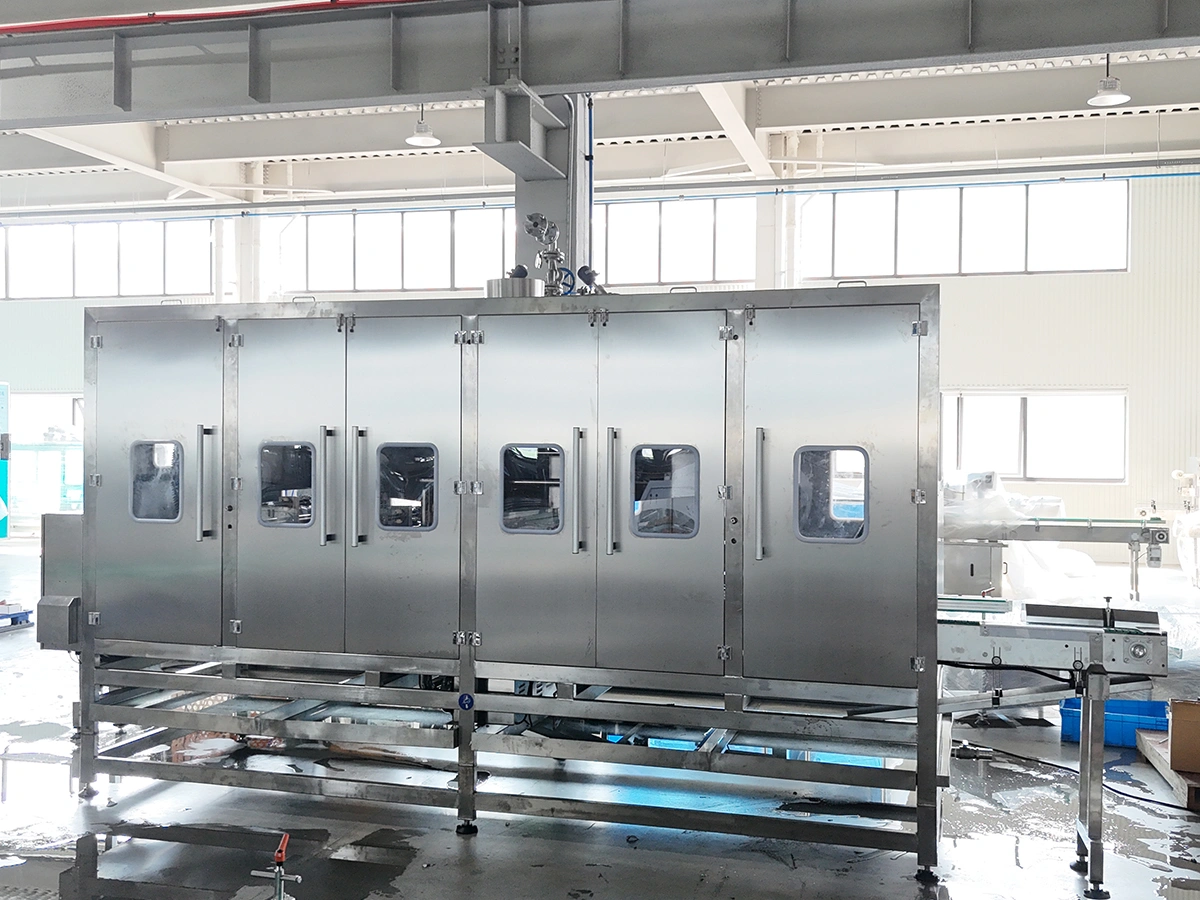

Applications
Specifications
| Model | |
|
| Capacity | 4000–6000 BPH | 8000–20000 BPH |
| Bottle height | 60–300mm | 60–300mm |
| Bottle diameter | 40–180mm | 40–180mm |
| Water spray pressure | 0.2–0.4MPa | 0.2–0.4MPa |
| Air injection pressure | 0.2–0.4MPa | 0.2–0.4MPa |
| Motor power | 5.35kW | 5.35kW |
| Dimensions | 3200 × 1500 × 1800mm | 4200 × 1500 × 2300mm |

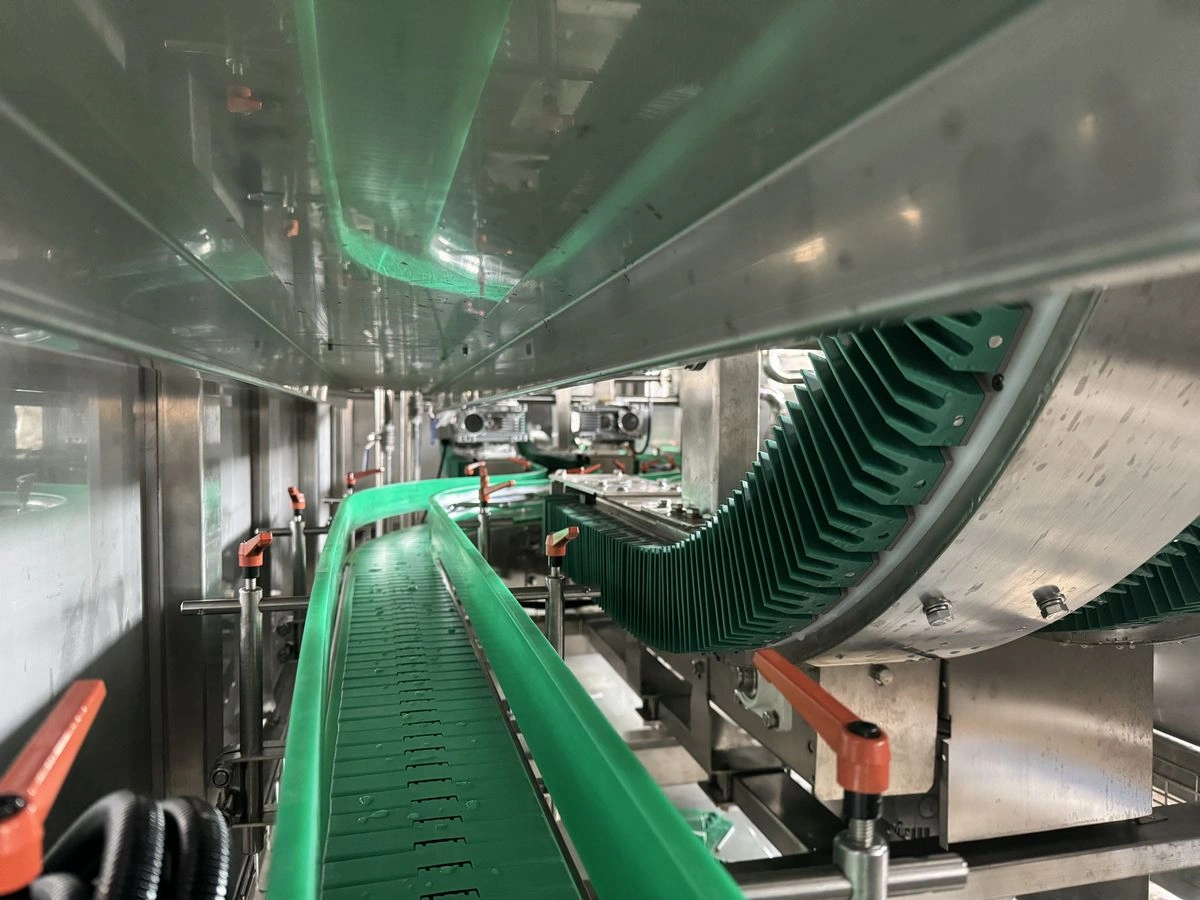

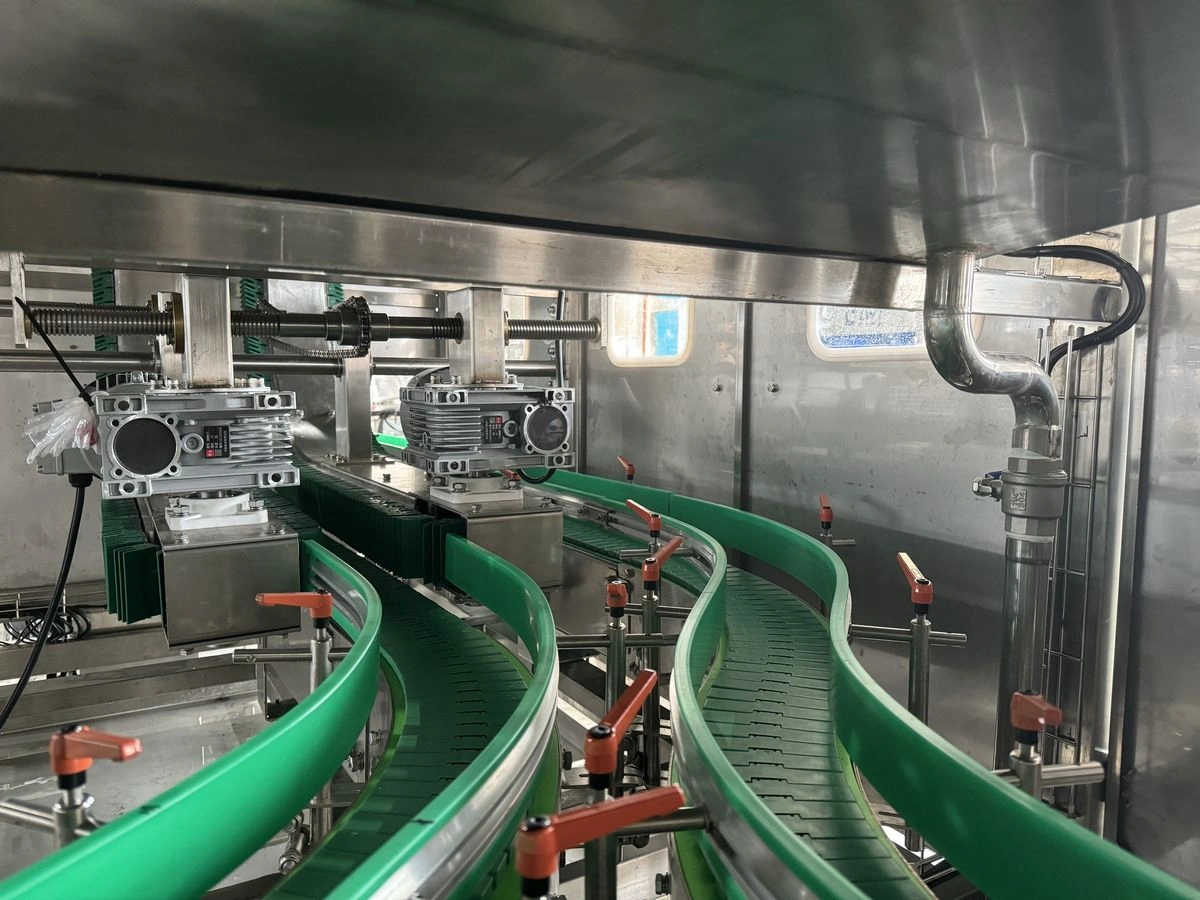

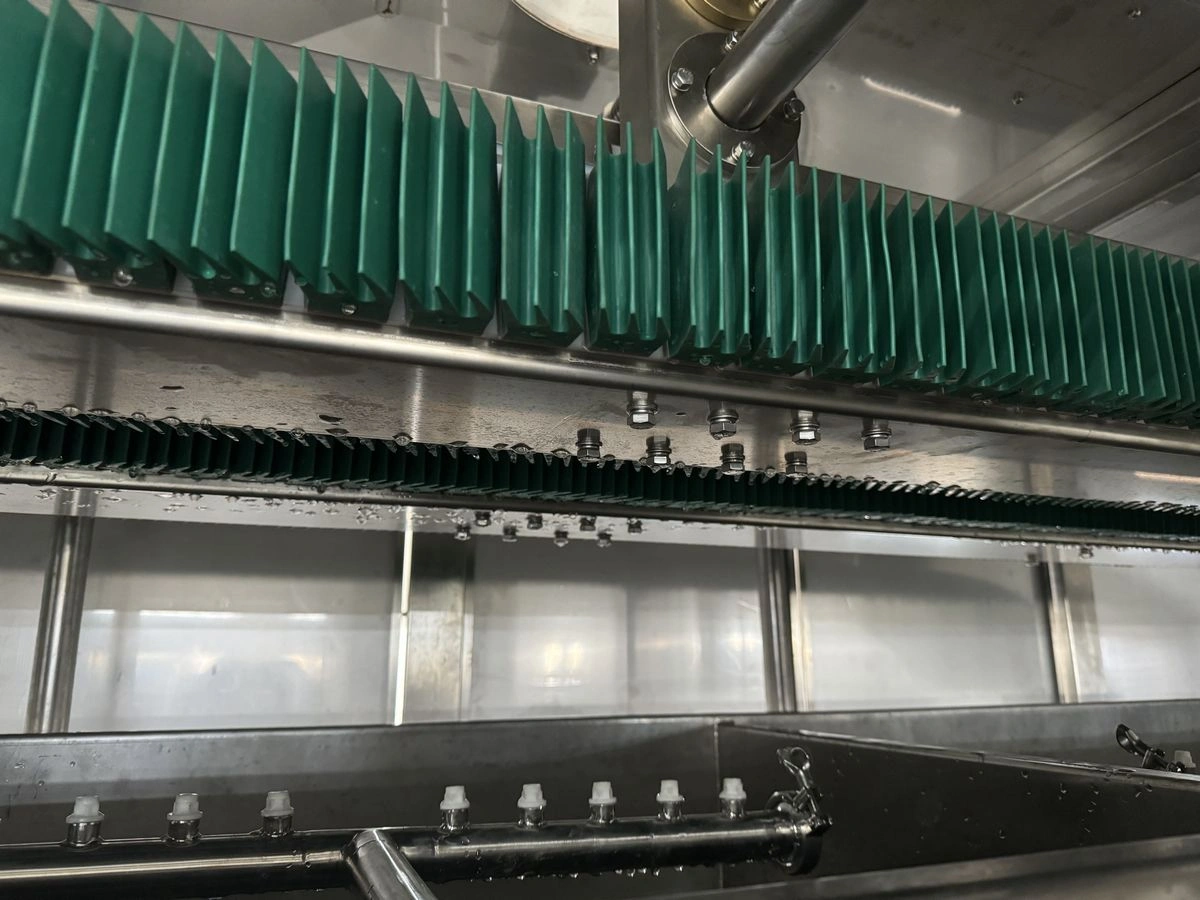

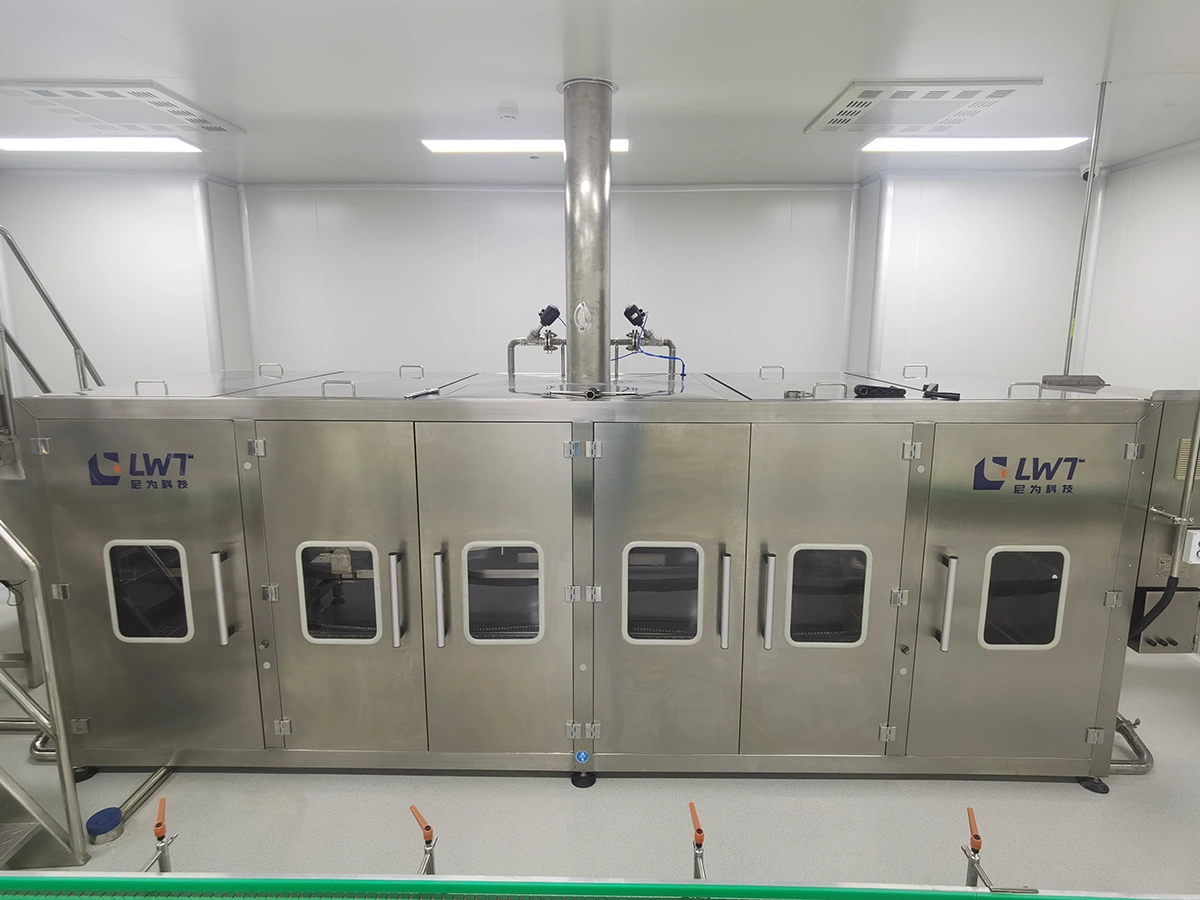

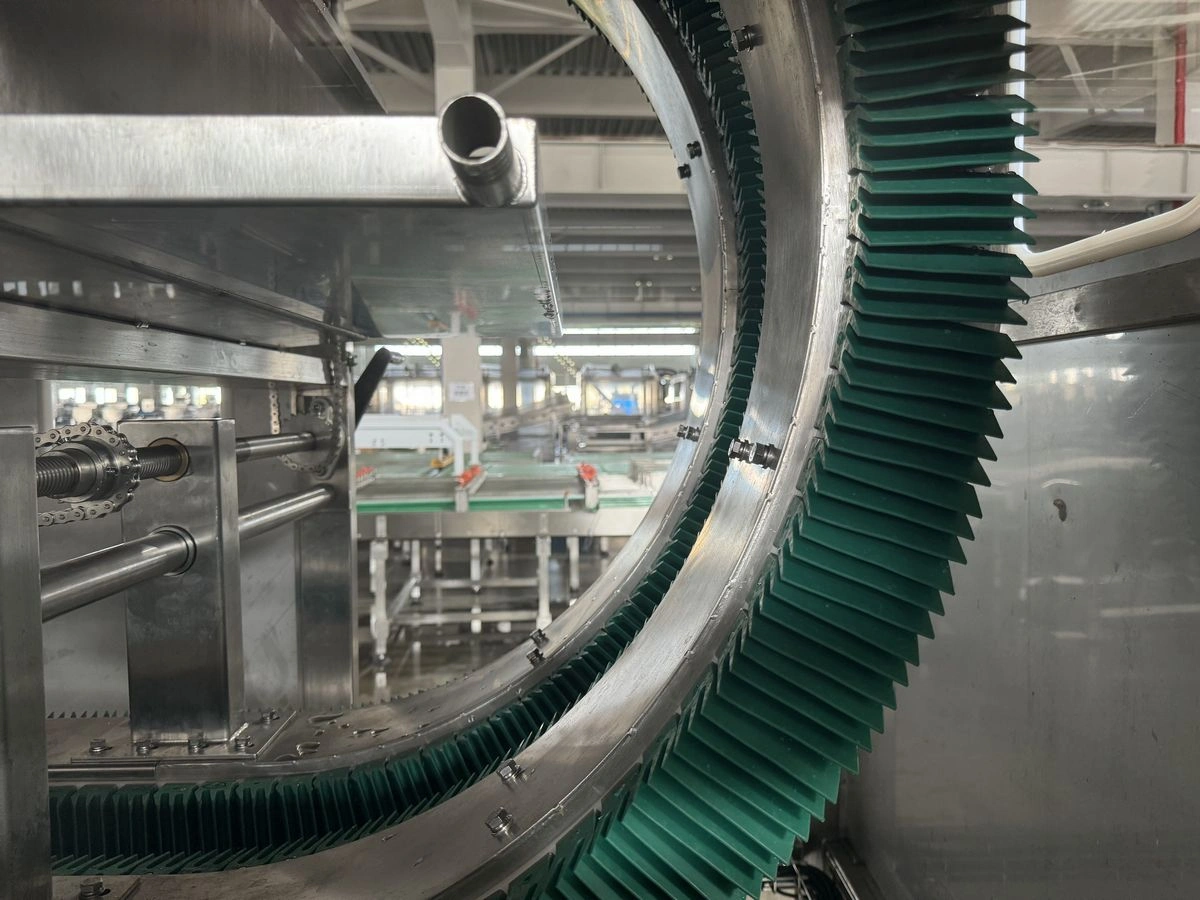

Machine details
